View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Freezer Door Parts
Freezer Shelf Parts
Liner Parts
Refrigerator Door Parts
Refrigerator Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:

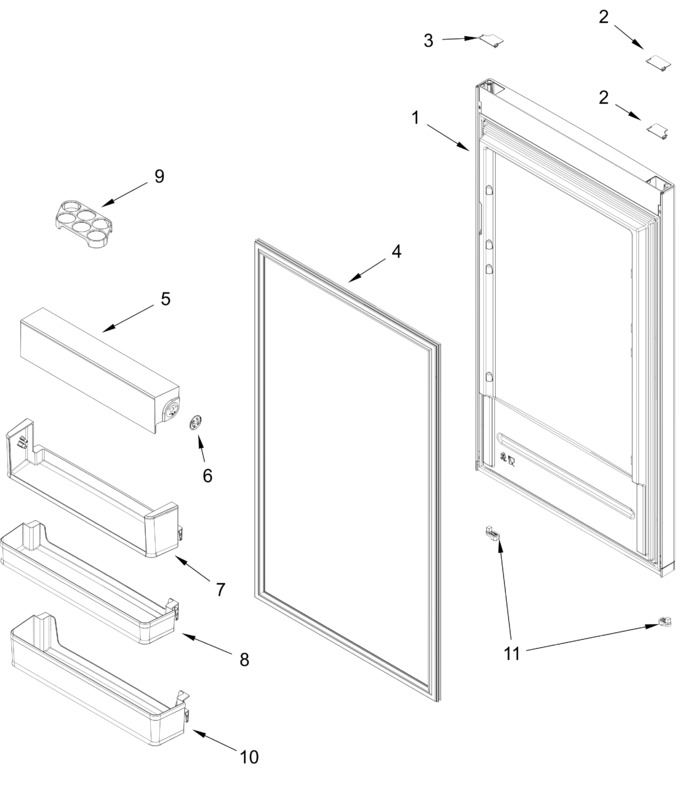

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756720 | Door, Refrigerator (stainless) (Replaces: W11755851) |
|
$ 493.62 | |||||
| 2 | W10740480 | Plug, Right Door (grey) |
|
$ 19.68 | |||||
| 3 | W10733967 | Plug (grey) |
|
$ 16.50 | |||||
| 4 | W11756734 | Gasket, Door (grey) (Replaces: W11227268) |
|
- | |||||
| 5 | W11756726 | Flap, Dairy (Replaces: W11255028) |
|
$ 54.92 | |||||
| 6 | W10538497 | Bumper, Dairy Compartment Lid |
|
$ 31.49 | |||||
| 7 | W11756723 | Shelf, Dairy (Replaces: W11330166) |
|
$ 49.97 | |||||
| 8 | W11756725 | Bin, Door (Replaces: W11643801) |
|
$ 49.97 | |||||
| 9 | W10575475 | Holder, Egg |
|
$ 11.66 | |||||
| 10 | W11756724 | Shelf, Bottle (Replaces: W11756915) |
|
$ 49.97 | |||||
| 11 | W11756722 | Stop, Door (left Hand) (Replaces: W11314734) |
|
Immediately | $ 18.11 | ||||
| W11757028 | Plug, Left Door (grey) (Replaces: W11323870) |
|
- | ||||||
| W10585758 | Stop, Door (right Hand) |
|
$ 7.16 |
