SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Shelf Parts


Liner Parts


Refrigerator Door Parts


Refrigerator Shelf Parts


Unit Parts

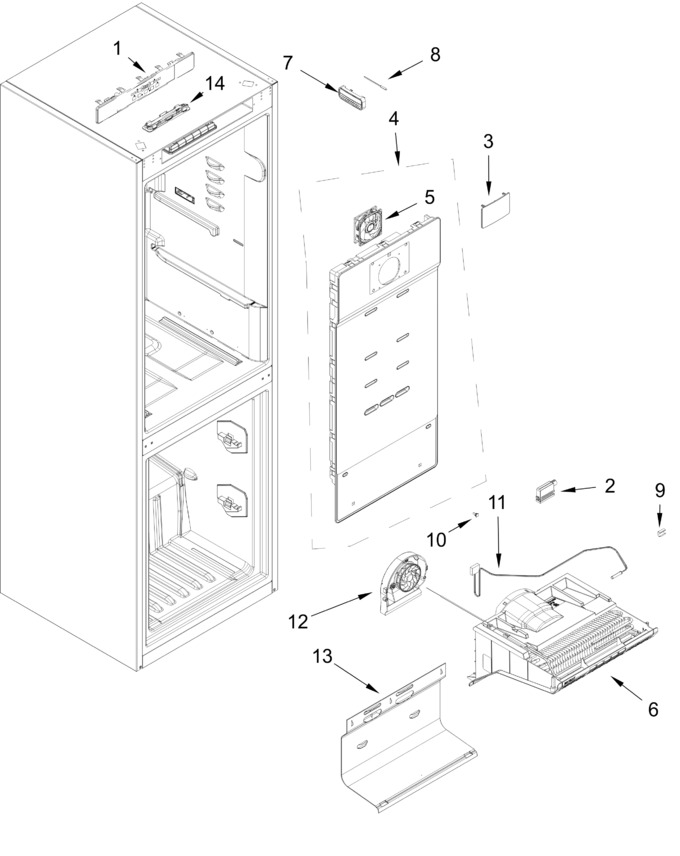

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11794075		Board, Electronic Control   (Replaces: W11755999)				$ 464.61
2	W11757144		Cover, Terminal   (Replaces: W11756317)		Appelez-nous	-
3	W11757146		Cover, Fan   (Replaces: W11755998)		Appelez-nous	-
4	W11757268		Assembly, Multiflow   (Replaces: W11756011)		Appelez-nous	-
5	W11757121		Motor, Fan   (Replaces: W11222687)			Immediately	$ 86.27
6	W11757270		Evaporator   (Replaces: W11756012)			Immediately	$ 493.36
7	W10726191		Cover, Sensor				$ 95.66
8	W11757152		Probe, Sensor   (Replaces: W11756005)			Immediately	$ 72.39
9	W10843127		Support, Freezer Sensor		Appelez-nous	-
10	W11767623		Stopper   (Replaces: W11470019)		Appelez-nous	-
11	W11757150		Fuse, Thermal   (Replaces: W11756001)		Appelez-nous	-
12	W11254745		Assembly, Fan		Appelez-nous	-
13	W10670579		Multiflow				$ 97.71
14	W11676836		Assembly, Led   (Replaces: W11113966)				$ 66.37

    View Diagram in Separate Window       Print Part List
