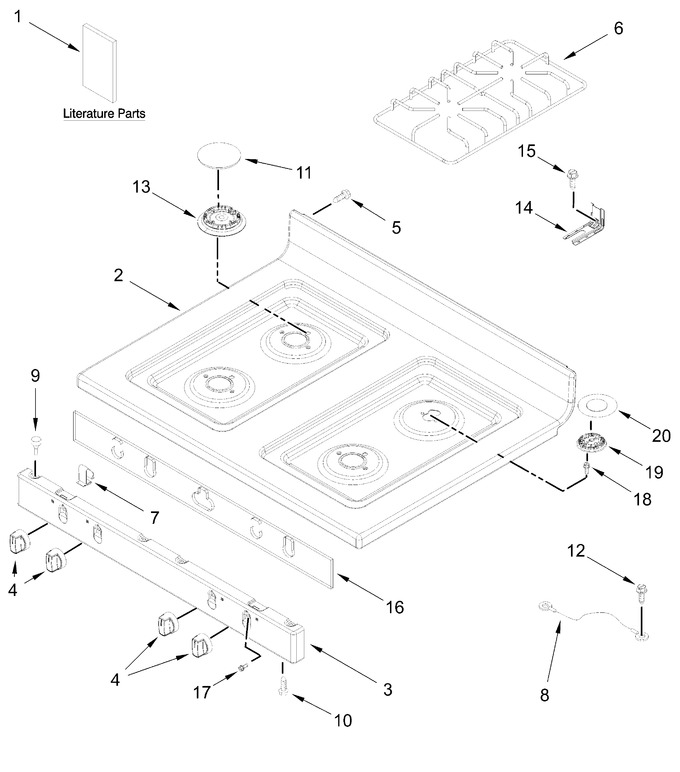

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11032725		Cooktop (black)   (Replaces: W10818512)		Appelez-nous	-
3	W11578465		Panel, Manifold (black)		Appelez-nous	-
4	W11761814		Knob (black)   (Replaces: W11744399)		Appelez-nous	-
5	WP98007225		Screw   (Replaces: 98007225)				$ 7.30
6	WPW10578251		Grate (black)   (Replaces: W10578251)				$ 49.47
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 12.44
8	3184020		Wire, Ground   (Replaces: 6610473)				$ 86.92
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11766163		Screw   (Replaces: W10135907)		Appelez-nous	-
11	WP98017461		Burner, Cap ( Ur Black)   (Replaces: 98017461)				$ 70.88
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 8.20
13	WPW10636224		Spreader, Flame   (Replaces: W10636224)			Immediately	$ 69.10
14	WPW10613666		Bracket, Anti-tip   (Replaces: W10613666)				$ 17.96
15	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
16	W11620511		Insulation, Manifold   (Replaces: W11492747)		Appelez-nous	-
17	98005658		Screw		Appelez-nous	-
18	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
19	WPW10515453		Spreader, Flame   (Replaces: W10515453)				$ 99.29
20	WPW10169985		Burner, Cap (aux Black)   (Replaces: W10169985)				$ 66.65
	98015022		Bushing, Snap		Appelez-nous	-
	98005896		Clip, Wire		Appelez-nous	-
	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
	W11774399		Harness, Main   (Replaces: W11465032)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARICAB9F47C830E6BE5278A9EA8C567F489		(left Front, Left, Rear, Right Front)		Appelez-nous	-
	W11745577		Quick Start Guide		Appelez-nous	-
	W11746533		Tech Sheet		Appelez-nous	-
	W11745575		Owners Manual		Appelez-nous	-
