Backguard Parts
Broiler Parts
Chassis Parts
Cooktop Parts
Door Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

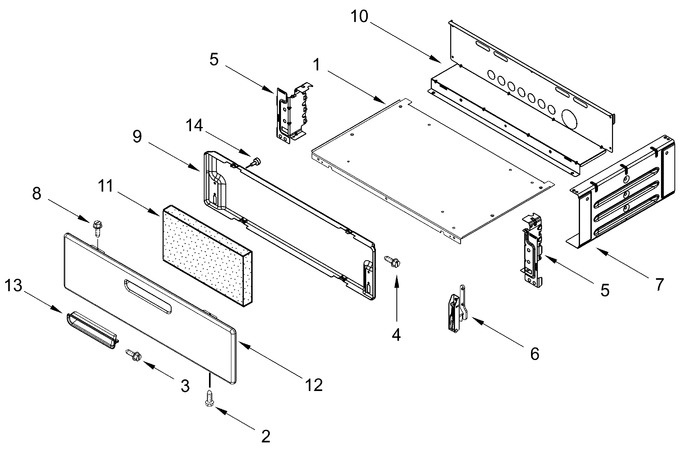

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11620318 | Baffle, Base |
|
- | |||||
| 2 | W10119413 | Screw |
|
- | |||||
| 3 | WP59002061 | Screw (Replaces: 98004993) |
|
$ 8.18 | |||||
| 4 | W10155121 | Screw |
|
- | |||||
| 5 | W10624273 | Cover, Broiler Left |
|
- | |||||
| 6 | W10647966 | Hinge |
|
- | |||||
| 7 | W11841244 | Panel, Side (Replaces: W10605426) |
|
- | |||||
| 8 | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 8.18 | ||||
| 9 | W10446851 | Liner, Broiler Drawer |
|
- | |||||
| 10 | W10682676 | Back Cover, Broiler |
|
- | |||||
| 11 | W11706803 | Insulation, Broiler Door (Replaces: W10216478) |
|
- | |||||
| 12 | W11596150 | Broiler Door, Panel (stainless) (Replaces: W11451944) |
|
- | |||||
| 13 | W11176979 | Handle Broiler Door (universal Silver) |
|
- | |||||
| 14 | 98004052 | Bumper, Door |
|
- | |||||
| W10624275 | Cover, Broiler Right |
|
- |
