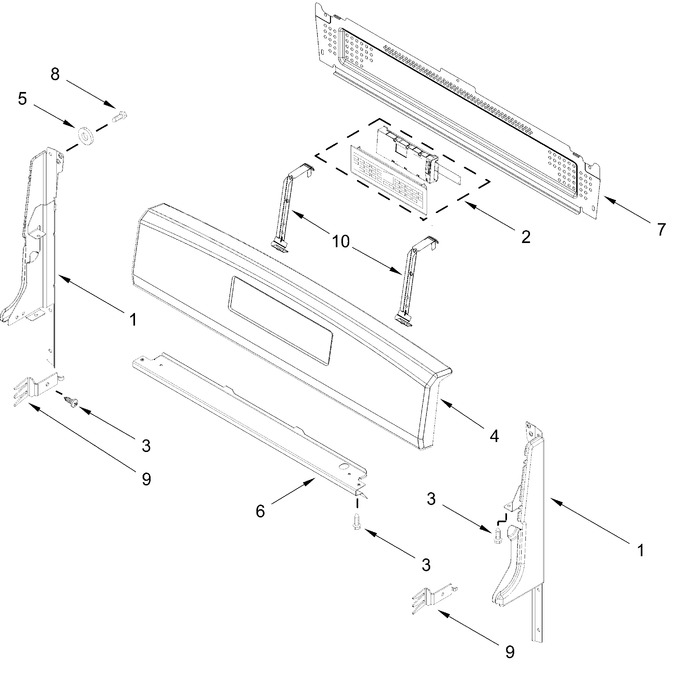

Backguard Parts
Broiler Parts
Chassis Parts
Cooktop Parts
Door Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10873109 | Endcap (black Left Hand) |
|
- | |||||
| 2 | W11805542 | Control, Electronic (black) (Replaces: W11691887) |
|
- | |||||
| 3 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 4 | W11620711 | Control, Panel (black) (Replaces: W11506685) |
|
- | |||||
| 5 | E12916 | Washer |
|
- | |||||
| 6 | W10535746 | Bracket, Console Mount |
|
- | |||||
| 7 | W10588614 | Backguard, Rear |
|
- | |||||
| 8 | WP98008545 | Screw (black) (Replaces: 98008545) |
|
$ 18.60 | |||||
| 9 | W10535815 | Bracket, Rear |
|
- | |||||
| 10 | W11620514 | Bracket, Control (Replaces: W11462420) |
|
- | |||||
| W10873107 | Endcap (black Right Hand) |
|
- |
