Backguard Parts
Broiler Parts
Chassis Parts
Cooktop Parts
Door Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

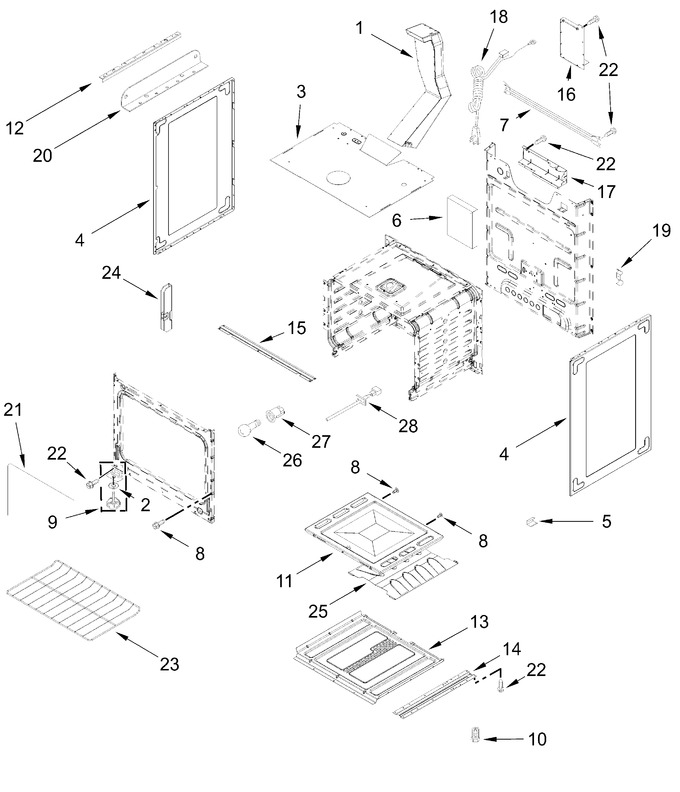

| 1 | W10675411 | Box, Flue |
|
- | |||||
| 2 | 98007193 | Spacer |
|
$ 10.38 | |||||
| 3 | W10636342 | Shield, Insulation |
|
- | |||||
| 4 | W10816993 | Panel, Side (black, Left) (Replaces: W10666212) |
|
- | |||||
| 5 | 98005502 | Clip, Oven Botton |
|
$ 14.11 | |||||
| 6 | W11173320 | Counterweight (Replaces: W10902689) |
|
- | |||||
| 7 | 98015363 | Support, Rear |
|
$ 85.97 | |||||
| 8 | WP98008545 | Screw (black) (Replaces: 98008545) |
|
$ 18.60 | |||||
| 9 | W10819918 | Foot Leveling Assembly (front) (Replaces: W10650383) |
|
- | |||||
| 10 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 11 | W11688761 | Oven Bottom, Assembly (Replaces: W11568988) |
|
- | |||||
| 12 | W10577312 | Support, Side Panel |
|
- | |||||
| 13 | W10670197 | Deflector, Oven |
|
- | |||||
| 14 | W10520269 | Rail, Base |
|
- | |||||
| 15 | W10545322 | Bracket, Manifold |
|
- | |||||
| 16 | W11492823 | Cover |
|
- | |||||
| 17 | W10549293 | Safety Valve, Rear Cover |
|
- | |||||
| 18 | W11173616 | Cord, Power (Replaces: W10640762) |
|
- | |||||
| 19 | W11510655 | Clip, Tubing |
|
- | |||||
| 20 | W10532560 | Side Panel, Support |
|
- | |||||
| 21 | WPW10535778 | Seal, Oven (Replaces: W10535778) |
|
$ 87.71 | |||||
| 22 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 23 | WPW10550642 | Rack, Oven (Replaces: W10550642) |
|
$ 110.82 | |||||
| 24 | W11161898 | Counter Support-hinge (Replaces: W10327222) |
|
- | |||||
| 25 | W11688713 | Spread, Flame (bake) (Replaces: W11579393) |
|
- | |||||
| 26 | W10888179 | Bulb, Light (Replaces: W10788320) |
|
$ 69.81 | |||||
| 27 | W10856866 | Socket - Oven Light (Replaces: W10554269) |
|
$ 7.55 | |||||
| 28 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| ARI968416391D3D0BEF160EE976C78A1C6C | (black And White Models) |
|
- | ||||||
| W11688850 | Insulation, Upper (Replaces: W10613818) |
|
- | ||||||
| W10537475 | Insulation, Back (Replaces: W11048974) |
|
- | ||||||
| 98004294 | Wire Tie, Insulation |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11492324 | Insulation, Wrap |
|
- | ||||||
| W10816993 | Panel, Side (black, Right) (Replaces: W10666211) |
|
- |
