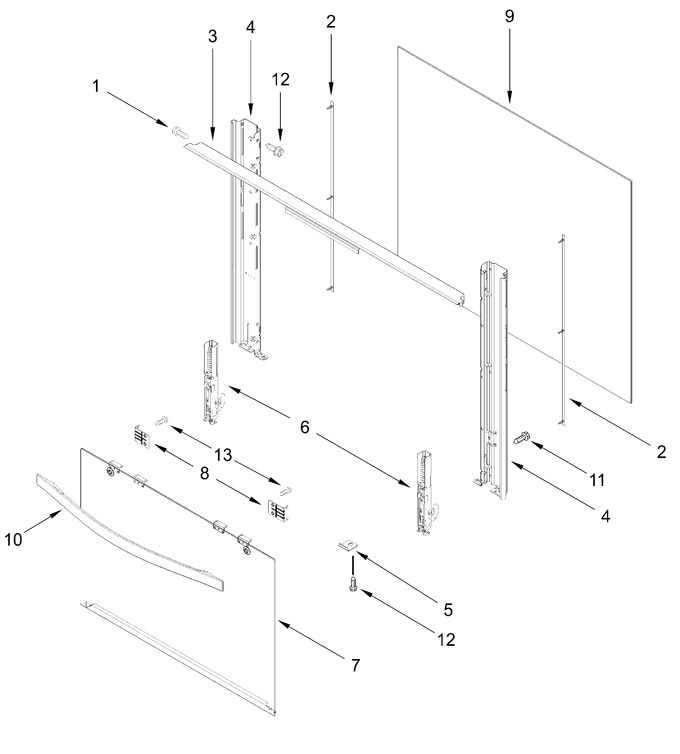

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 8.18
2	W11104748		Seal, Inner Door   (Replaces: W10292266)		Appelez-nous	-
3	W11105139		Upper Trim, Oven Door   (Replaces: W10544145)				$ 152.63
4	W11209792		Side, Trim (left)   (Replaces: W10445015)		Appelez-nous	-
5	W10883315		Glass Door Hold, Bracket (black)   (Replaces: W10811550)		Appelez-nous	-
6	W10857234		Hinge, Oven Door   (Replaces: W10535788)		Appelez-nous	-
7	W11765128		Glass, Outer Door (stainless)   (Replaces: W11757708)		Appelez-nous	-
8	W11389703		Bracket, Oven Door   (Replaces: W10744067)		Appelez-nous	-
9	WPW10535767		Glass, Inner   (Replaces: W10535767)				$ 291.66
10	W10894054		Oven Door, Handle (stainless)   (Replaces: W10831891)		Appelez-nous	-
11	W11206744		Screw   (Replaces: 98008699)				$ 14.23
12	W10837731		Screw   (Replaces: W10493726)				$ 8.30
13	WP59002061		Screw   (Replaces: 98004993)				$ 8.18
	ARI3C49C9DC6B0DC420743A70CB0845DBA3		(white And Black Models)		Appelez-nous	-
	W11232008		Side, Trim (right)   (Replaces: W10445013)		Appelez-nous	-
