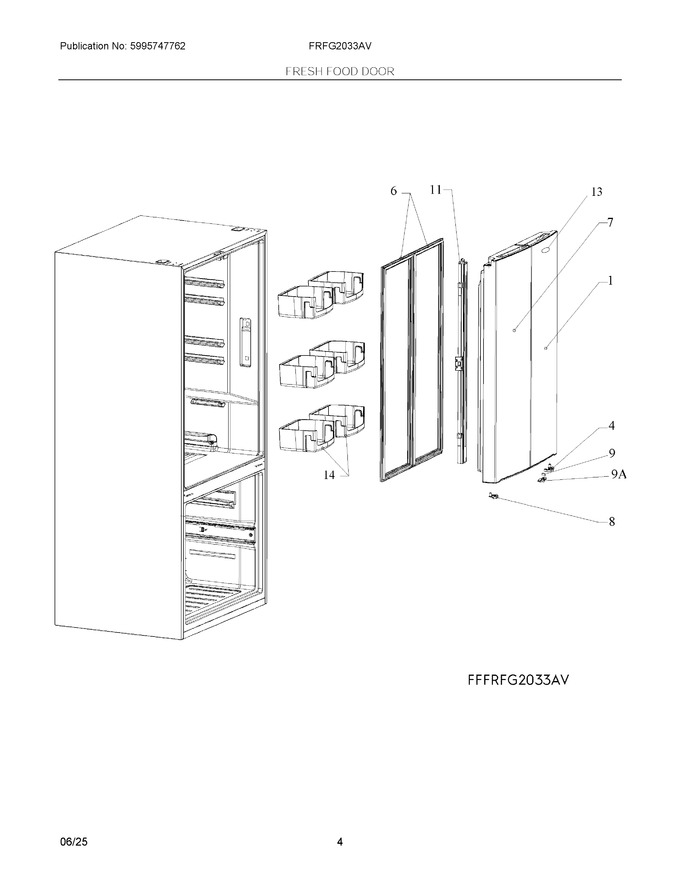

03 - Fresh Food Door
04 - Cabinet
05 - Shelves
06 - Cooling System
07 - Controls
08 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056016837 | Door Assembly, Fresh Food, Stainless, Right |
|
$ 254.83 | |||||
| 4 | 4055849923 | Stopper, Bearing, Door, Right |
|
- | |||||
| 6 | 4056016795 | Gasket Door, Fresh Food |
|
$ 49.24 | |||||
| 7 | 4056016829 | Door Assembly, Fresh Food, Stainless, Left |
|
$ 252.88 | |||||
| 8 | 4055849915 | Stopper, Bearing, Door, Left |
|
- | |||||
| 9 | 4055849931 | Magnet, Reed Switch, Refrigerator, Door |
|
Immediately | $ 40.29 | ||||
| 11 | 4056016803 | Flip Mullion Assembly, Fresh Food |
|
$ 144.75 | |||||
| 13 | 5304518568 | Badge, Nameplate, Stainless, Frigidaire |
|
Immediately | $ 80.54 | ||||
| 14 | 4056016738 | Bin, Door, Gallon |
|
$ 14.00 | |||||
| 9A | 4056016845 | Cover, Magnet, Reed Switch |
|
- |
