Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056033758		Leveling Foot				$ 8.19
2	4056016621		Door Hinge, Assembly, Lower, Right		Appelez-nous	-
3	4056033659		Door Hinge, Middle, Rh		Appelez-nous	-
4	4056033667		Door Hinge, Middle, Lh		Appelez-nous	-
5	4056017462		Configured Electronic, Main Board				$ 244.15
6	4056017454		Cover, Main Board, Rear				$ 45.80
8	4056016902		Temperature Sensor				$ 24.86
9	4056017488		Air Tower, Evaporator, Assembly				$ 127.87
10	FRGPAAF1		Air Filter, Assembly   (Replaces: 4056016860)			Immediately	$ 29.77
11	4056016878		Cover, Air Filter		Appelez-nous	-
12	4056017249		Cover, Service, Lower		Appelez-nous	-
13	5304525361		Pc Board, Led Light		Appelez-nous	-
14	4056016571		Led Light, Fresh Food		Appelez-nous	-
15	4055850053		Temperature Sensor, Humidity		Appelez-nous	-
18	4056017496		Duct Air, Cover Assembly, Evaporator, Freezer		Appelez-nous	-
19	5304537968		Fan Assembly, Evaporator, Motor				$ 192.01
29	4055850095		Hinge Door, Top, Right		Appelez-nous	-
30	4055850079		Hinge Door, Top, Left		Appelez-nous	-
31	4055850061		Cover, Top Hinge, Left, 31				$ 9.68
33	4055850087		Cover, Top Hinge, Right		Appelez-nous	-
34	4056016563		Buzzer, Pc Board, Ambient & Humidity		Appelez-nous	-
41	4056016647		Sealing Gasket, Cabinet		Appelez-nous	-
43	4056017538		Damper Electrical				$ 78.68
13A	5304537981		Housing, Led Light		Appelez-nous	-
13B	5304525360		Lens, Led Light, Upper		Appelez-nous	-
14A	4055850046		Cover, Led Light, Fresh Food		Appelez-nous	-
18A	4056017256		Front Cover, Air Duct, Evaporator, Freezer		Appelez-nous	-
18B	4056017264		Support, Air Duct, Evaporator, Freezer		Appelez-nous	-
18C	4056017272		Sponge, Air Duct, Evaporator, Freezer		Appelez-nous	-
18D	5304521553		Sensor Temperature, Defrost, Air Duct				$ 75.71
2A	4056016654		Door Hinge, Assembly, Lower, Left		Appelez-nous	-
43A	4056017546		Cover, Damper, Electrical		Appelez-nous	-
9A	405601723		Foam, Air Tower, Service		Appelez-nous	-
9B	4056016894		Sponge, Air Tower, Evaporator, Fresh Food		Appelez-nous	-
9C	4056016910		Foam Cover, Air Duct, Evaporator, Fresh Food		Appelez-nous	-
9D	4056017215		Cover, Plastic Plate, Air Duct, Evaporator, Fresh Food		Appelez-nous	-
9E	4056017223		Sponge Lower, Air Duct, Evaporator, Fresh Food				$ 15.38
9F	4056016886		Cover, Air Tower, Evaporator, Fresh Food		Appelez-nous	-

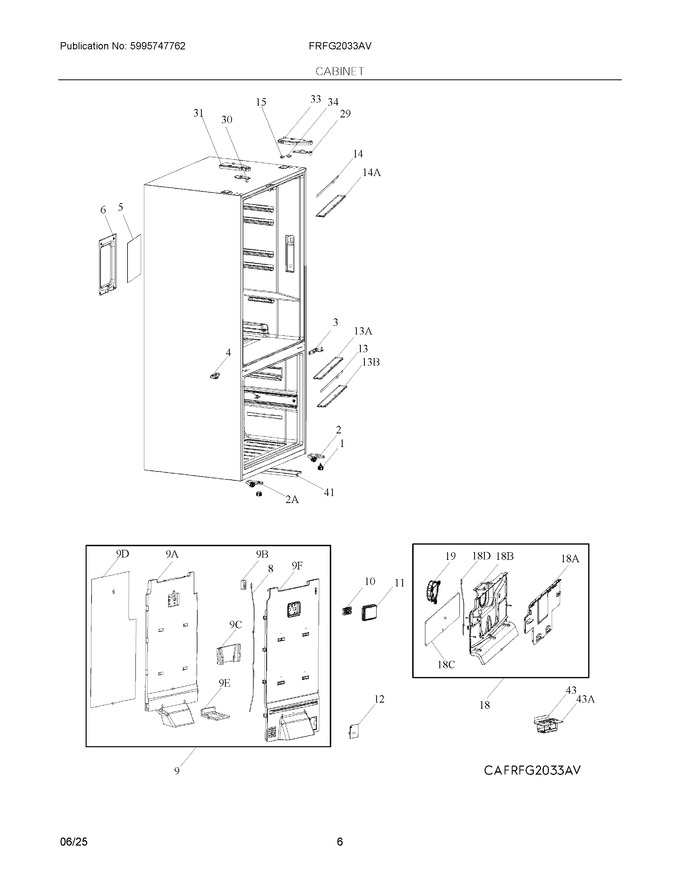

    View Diagram in Separate Window       Print Part List
