05 - Shelves

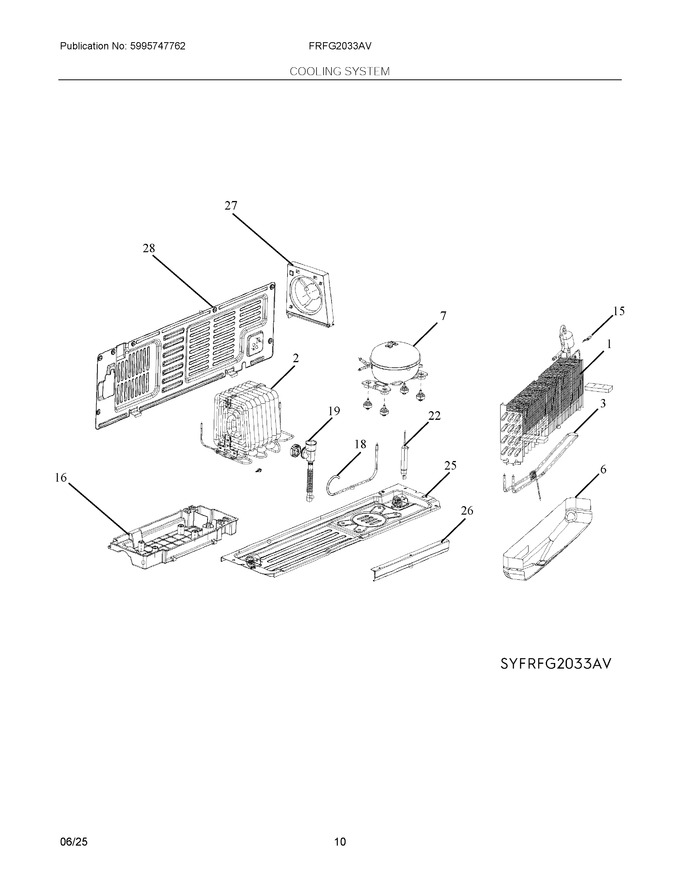

06 - Cooling System


07 - Controls


08 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056017504		Evaporator Assembly		Appelez-nous	-
2	4056004098		Evaporator Condenser		Appelez-nous	-
3	4056017512		Heater Defrost, Evaporator		Appelez-nous	-
6	4056017280		Trough, Heat Shield, Evaporator		Appelez-nous	-
7	5304532055		Compressor, Assembly			Immediately	$ 599.90
15	4056017520		Sensor, Temperature, Probe, Defrost		Appelez-nous	-
16	4056017314		Drain Pan, Assembly		Appelez-nous	-
18	4056017306		Tube Suction, Jumper		Appelez-nous	-
19	5304521530		Pipe, Drain, Tube				$ 29.65
22	5304538760		Drier, Filter, Service   (Replaces: 4056015938)		Appelez-nous	-
25	4056017322		Base Assembly, Compressor		Appelez-nous	-
26	4056017298		Sealing Gasket, Evaporator		Appelez-nous	-
27	4056004106		Cooling Fan, Bracket, Assembly		Appelez-nous	-
28	4056017330		Rear Cover, Compressor		Appelez-nous	-
