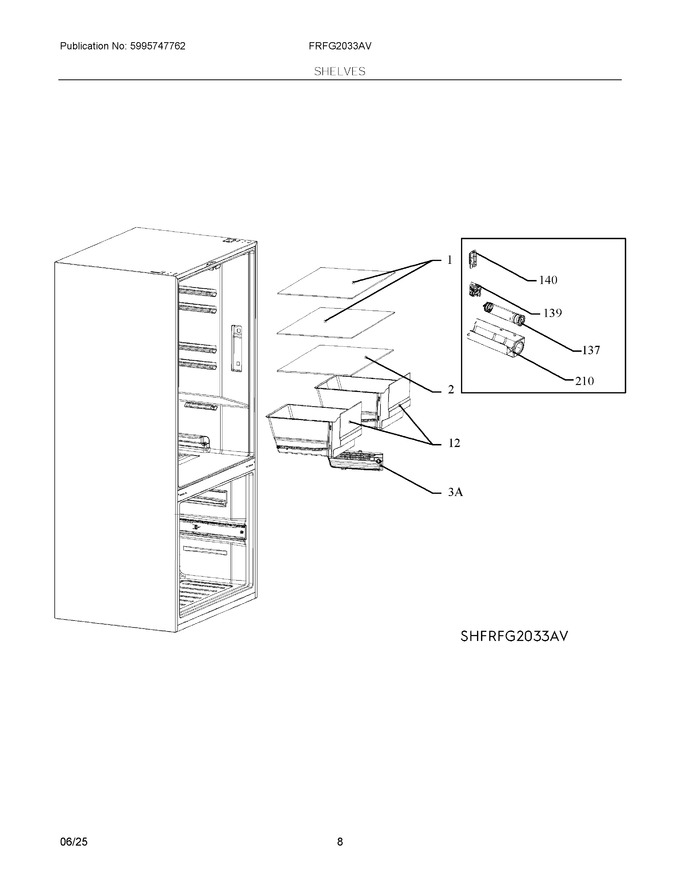

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056016662		Shelf Assembly, Fresh Food, Glass				$ 93.70
2	4056016670		Crisper Cover, Assembly		Appelez-nous	-
12	4056016688		Crisper Drawer, Assembly, Complete				$ 54.54
137	FPPWFU01		Water Filter   (Replaces: 4056017421)			Immediately	$ 80.38
139	140156010054		Manifold, Water Filter   (Replaces: 4056017439)			Immediately	$ 30.57
140	4056017447		Cover, Manifold, Water Filter			Immediately	$ 2.81
210	4056017413		Cover, Water Filter				$ 8.89
3A	4056016696		Vertical Divider, Crisper Drawer, Fresh Food		Appelez-nous	-
