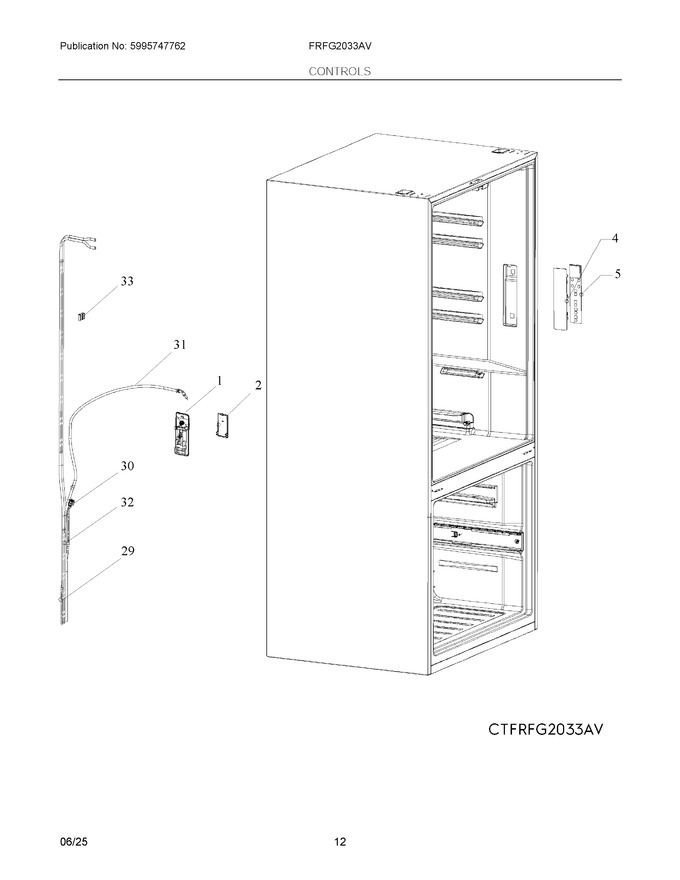

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056017389 | Dispenser Assembly, Water |
|
$ 100.11 | |||||
| 2 | 4056017397 | Paddle, Water Dispenser |
|
Immediately | $ 40.29 | ||||
| 4 | 4056016589 | User Interface Board, Display Assembly |
|
$ 52.85 | |||||
| 5 | 4056016597 | User Interface Board, Electric Control |
|
Immediately | $ 119.13 | ||||
| 29 | 4056017348 | Pipe, Supply Tube, Outlet, Water Filter |
|
$ 25.97 | |||||
| 30 | 4056017363 | Pipe, Supply Tube, Ice Maker |
|
$ 20.52 | |||||
| 31 | 4056017371 | Pipe, Supply Tube, Dispenser |
|
$ 30.37 | |||||
| 32 | 4056082805 | Pipe, Supply Tube, Inlet, Water Filter (Replaces: 4056017355) |
|
Immediately | $ 39.93 | ||||
| 33 | 4056017405 | Clamp, Water Tube |
|
- |
