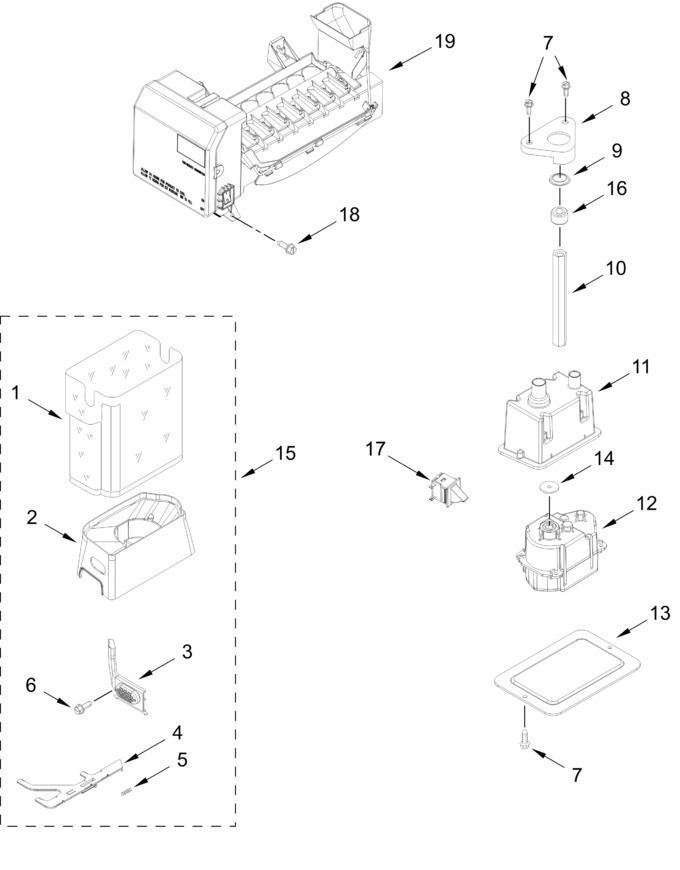

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222965		Bin, Ice   (Replaces: 2222965)				$ 227.45
2	W11631618		Bin, Lower Crusher   (Replaces: W11567096)		Appelez-nous	-
3	W10749207		Button, Bin				$ 69.70
4	W10134783		Latch, Bin				$ 105.17
5	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
6	2198671		Screw (stainless)				$ 10.92
7	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
8	W11636223		Clip, Shaft   (Replaces: W11443152)		Appelez-nous	-
9	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
10	W11841865		Shaft, Drive   (Replaces: 2318030)			Immediately	$ 115.26
11	W11608470		Enclosure, Dispenser Motor		Appelez-nous	-
12	W10822606		Motor, Dispenser   (Replaces: W11185741)			Immediately	$ 156.54
13	W11608469		Cover, Dispenser Motor		Appelez-nous	-
14	WPW10254073		Washer   (Replaces: W10254073)			Immediately	$ 10.61
15	W11574171		Assembly, Ice Container				$ 298.84
16	WP2315559		Sleeve, Bearing   (Replaces: 2315559)			Immediately	$ 85.41
17	W11629953		Switch, Auger Motor   (Replaces: W11592419)				$ 26.66
18	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
19	W11737192		Icemaker Assembly, Complete   (Replaces: W11548785)				$ 425.50
