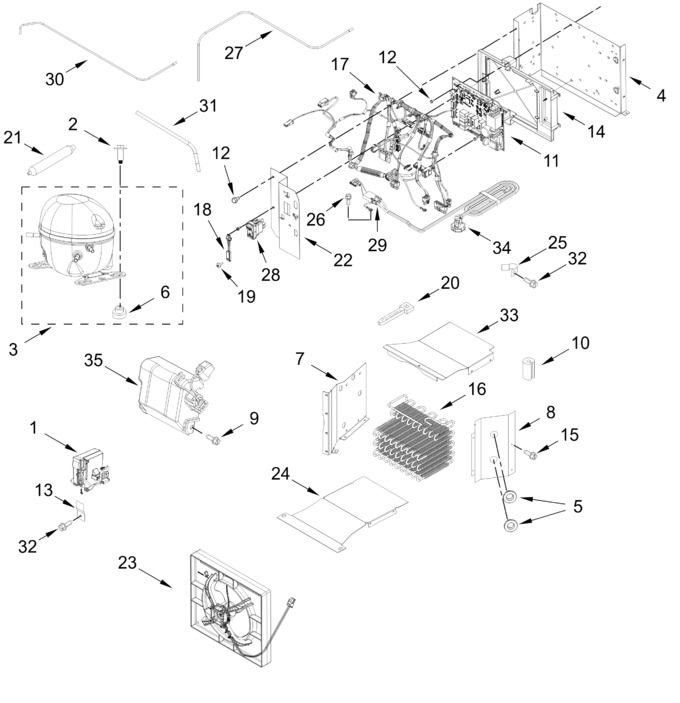

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11623097		Box Assembly, Inverter   (Replaces: W11411269)			Immediately	$ 337.94
2	W11661574		Screw   (Replaces: 489473)				$ 14.29
3	W11557671		Compressor   (Replaces: W11332037)			Immediately	$ 728.13
4	W10550831		Housing, Control Board Mounting		Appelez-nous	-
5	W10587113		Mounting Grommet, Condenser		Appelez-nous	-
6	W11661108		Mounting Grommet, Compressor   (Replaces: 2183042)				$ 15.21
7	W11756945		Support, Condenser (left Hand)   (Replaces: W11695311)		Appelez-nous	-
8	W11756946		Support, Condenser (right Hand)   (Replaces: W11695312)		Appelez-nous	-
9	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
10	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
11	W11752963		Control, Electronic   (Replaces: W11683503)			Immediately	$ 300.81
12	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
13	2256328		Bracket, Inverter Mounting		Appelez-nous	-
14	W11623130		Housing, Control Board   (Replaces: W11435369)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
16	W11693236		Condenser   (Replaces: W11601407)				$ 165.30
17	W11421662		Harness, Unit Wire				$ 210.50
18	W11627456		Sensor, Relative Humidity   (Replaces: W11482040)				$ 92.93
19	W10068580		Screw		Appelez-nous	-
20	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
21	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
22	W11435371		Bracket, Control Assembly		Appelez-nous	-
23	W11623099		Fan Assembly, Condenser   (Replaces: W11464545)				$ 146.65
24	W11756954		Bracket, Condenser Bottom   (Replaces: W11695784)		Appelez-nous	-
25	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 22.12
26	00487294		Screw   (Replaces: 487294)				$ 175.09
27	W11777981		Tube, Heat Loop Transition   (Replaces: W11602251)		Appelez-nous	-
28	W11623128		Switch, Power Disconnect   (Replaces: W11311927)				$ 125.83
29	2310195		Wire Assembly, Jumper (power Switch To Power Cord)				$ 123.20
30	W11735284		Tube, Drier Transition   (Replaces: W11602250)				$ 59.94
31	W11747981		Tube, Process   (Replaces: W11672778)				$ 39.94
32	W11624204		Screw   (Replaces: 486194)				$ 14.72
33	W11756951		Cover, Condenser Support   (Replaces: W11695783)		Appelez-nous	-
34	2310196		Cord, Power			Immediately	$ 88.52
35	W11247667		Cover Assembly, Compressor   (Replaces: W11235263)				$ 115.24
	W11504416		8.5/6 Nr Ms 00			Immediately	$ 27.51
	ARI965252DC1F4FD5CF3FA42BFE2E8F47DA		69 Grams (r600a)		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	ARIDC3909E200058FAFA59ECDE3D8CD23DE		(suction Line To Condenser)		Appelez-nous	-
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	W11504432		6/5 Nr Ms 00			Immediately	$ 25.88
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 25.89
	W11504431		7/5 Nr Ms 00			Immediately	$ 27.13
	W11504445		5/4 Nr Ms 00			Immediately	$ 28.92
	ARI3031A698A6B8030D731C976AE04824C1		(high Pressure Side To Compressor)		Appelez-nous	-
	ARIF479D1A0D17290EA712C859BF2E1C691		(high Side To Condenser)		Appelez-nous	-
	ARI8F052732CB60E39F6CA094A8168A5109		(process Tube To Compressor)		Appelez-nous	-
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
