Cabinet Parts


Cabinet Trim Parts


Dispenser Parts


Freezer Door Parts


Freezer Liner And Air Flow Parts


Freezer Shelf Parts


Icemaker And Ice Container Parts


Lower Unit And Tube Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Refrigerator Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

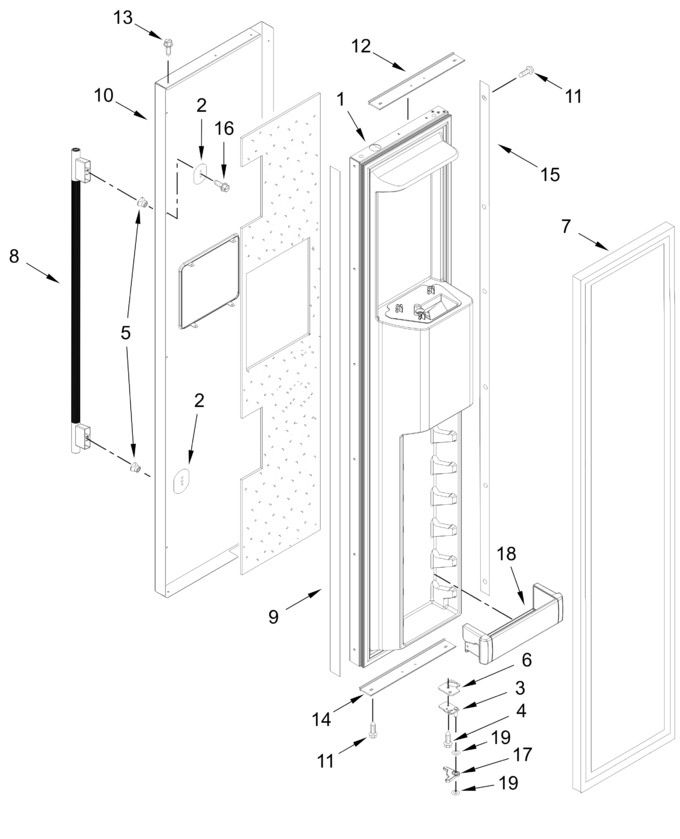

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827078		Door, Freezer   (Replaces: W11502200)				$ 1,055.49
2	W10127710		Plate, Handle Door			Immediately	$ 25.94
3	W11752085		Hinge Assembly, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87
6	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 108.07
7	W11625082		Gasket, Door (grey)   (Replaces: W10761964)				$ 380.50
8	W11784350		Handle, Door (stainless)   (Replaces: W11737006)			Immediately	$ 271.05
9	W10758113		Spacer, Handle Side Door		Appelez-nous	-
10	W11819006		Skin, Fc Door (stainless)   (Replaces: W11737534)				$ 612.39
11	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
12	W10758117		Spacer, Door Skin (top)		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	W10758119		Spacer, Door Skin Bottom				$ 49.77
15	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
18	W11408939		Bin, Shallow Door			Immediately	$ 181.06
19	WP2006346		Washer, Door Bearing   (Replaces: 2006346)			Immediately	$ 11.76
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
