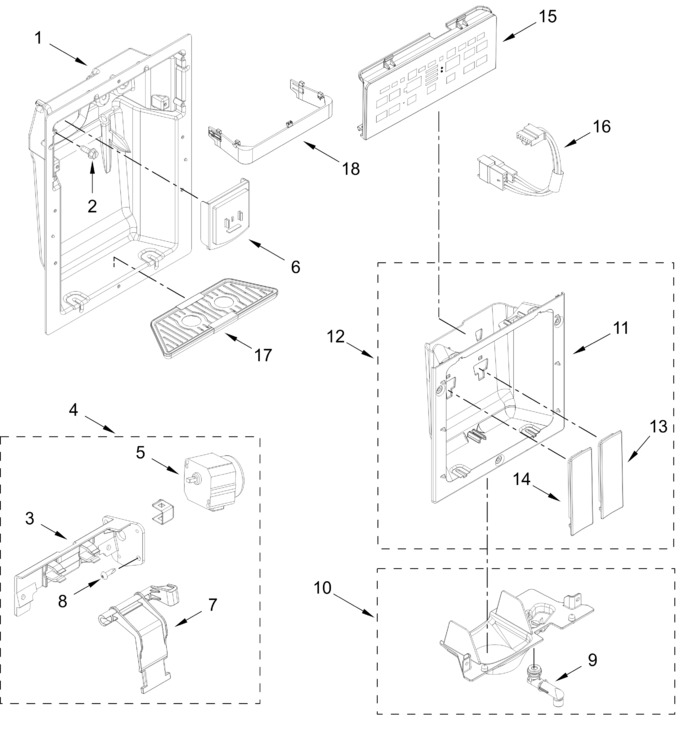

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI7BA56BA2C1ECE25D7D2B23E3FB9AE19C		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
3	W10542660		Bracket, Motor			Immediately	$ 93.26
4	WPW10546285		Motor And Bracket Assembly, Ice Door   (Replaces: W10546285)			Immediately	$ 104.97
5	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
6	WPW10504458		Door, Ice   (Replaces: W10504458)			Immediately	$ 25.40
7	W10542663		Support, Ice Door			Immediately	$ 84.71
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	WP2305235		Assembly, Spigot   (Replaces: 2305235)				$ 147.07
10	W11649219		Separator, Dispenser				$ 57.95
11	ARI2E72A606D42E289883B6ABC10C711CA5		Housing, Middle (not Available Order Item 12)		Appelez-nous	-
12	W11784430		Housing Assembly, Pad   (Replaces: W11745339)				$ 739.26
13	W11784423		Paddle Assembly, Water   (Replaces: W11745341)		Appelez-nous	-
14	W11784422		Paddle Assembly, Ice   (Replaces: W11745340)		Appelez-nous	-
15	W11784424		Control, User Interface   (Replaces: W11753453)		Appelez-nous	-
16	W11629730		Wire, User Interface Jumper   (Replaces: W11428836)			Immediately	$ 26.89
17	W11784425		Tray, Dispenser Drip   (Replaces: W11745342)				$ 99.10
18	W11753780		Cover, Dispensing (chrome)   (Replaces: W11460940)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
