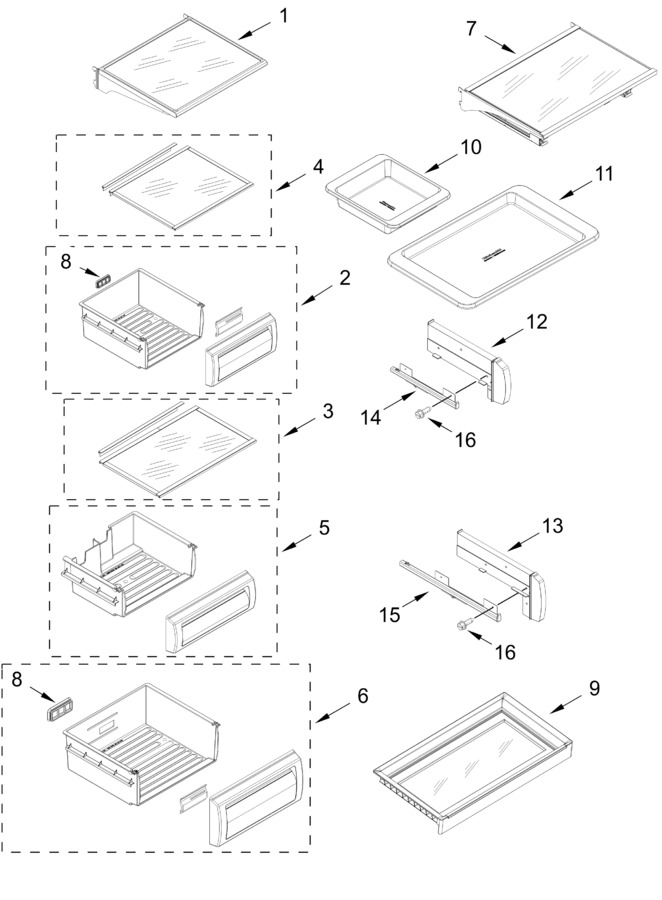

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11630863		Shelf Assembly, Fixed   (Replaces: W11410512)				$ 194.75
2	W11755567		Pan Assembly, Crisper   (Replaces: W11740834)		Appelez-nous	-
3	W11630862		Pan Cover Assembly, Meat   (Replaces: W11441724)		Appelez-nous	-
4	W11630861		Pan Cover Assembly, Crisper   (Replaces: W11441726)		Appelez-nous	-
5	W11448427		Pan Assembly, Meat		Appelez-nous	-
6	W11788123		Pan, Cool Control Crisper   (Replaces: W11767863)		Appelez-nous	-
7	W11788124		Shelf Assembly, Bakeware   (Replaces: W11754546)		Appelez-nous	-
8	2307810		Duct, Deli Pan		Appelez-nous	-
9	W11788125		Shelf Assembly, Platter   (Replaces: W11766360)		Appelez-nous	-
10	W11633366		Pan, Cake   (Replaces: W11522384)				$ 72.22
11	W11633367		Sheet, Baking   (Replaces: W11522386)				$ 70.51
12	W11410122		Spacer, Crisper Pan (left Hand)		Appelez-nous	-
13	W11410124		Spacer, Meat Pan (left Hand)		Appelez-nous	-
14	2302956		Slide, Crisper Pan (left Hand)				$ 298.73
15	W10844011		Slide, Meat Pan Closer (left Hand)				$ 320.20
16	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
	W11410125		Spacer, Meat Pan (right Hand)		Appelez-nous	-
	ARIFE26C32C0D260E4F0CD7D243D4292330		(left Hand)		Appelez-nous	-
	ARIF959192793ABCBAD1A31237D162F5226		(right Hand)		Appelez-nous	-
	W11410123		Spacer, Crisper Pan (right Hand)		Appelez-nous	-
	2302957		Slide, Crisper Pan (right Hand)				$ 228.33
	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
	W10732727		Slide, Meat Pan Closer (right Hand)			Immediately	$ 342.94
