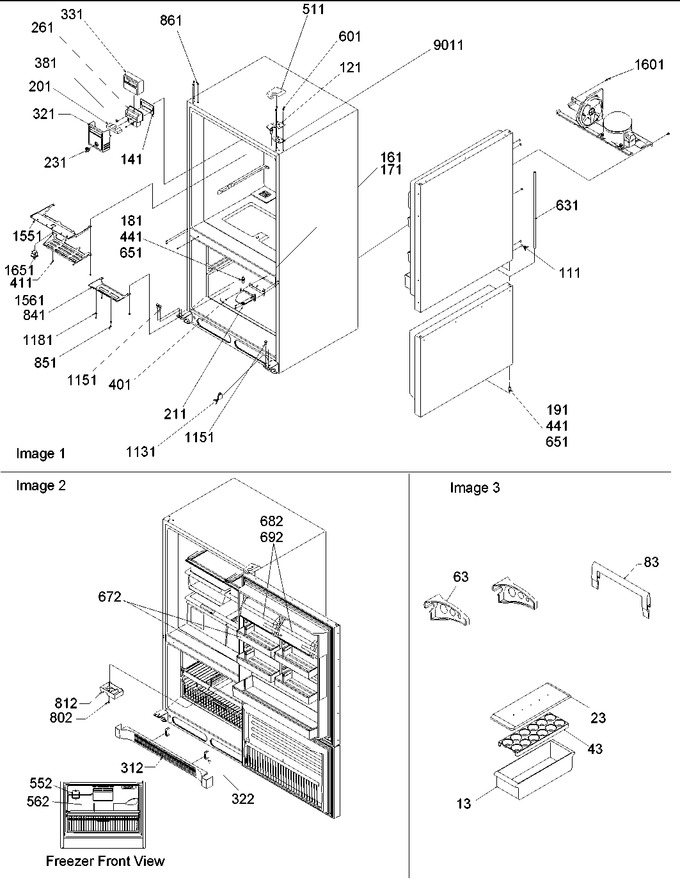

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 10423131 | Bin, Utility |
|
$ 31.13 | |||||
| 23 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 33 | 10448903 | Rack, Bottle |
|
- | |||||
| 43 | 10436506 | Tray, Egg |
|
$ 8.28 | |||||
| 63 | 12103905 | Snugger, Door Shelf |
|
- | |||||
| 83 | 10468004 | Retainer, Tall Pkg |
|
- | |||||
| 111 | WP12246608 | Plug, Handle Hole (blk) (Replaces: 12246603) |
|
Immediately | $ 8.15 | ||||
| 121 | 12077316 | Hinge, Top-e Ct |
|
- | |||||
| 141 | B8345401 | Gasket, Damper |
|
- | |||||
| 161 | 10562211 | Shim, Center Hinge |
|
- | |||||
| 171 | 10562203 | Shim, Center Hinge |
|
- | |||||
| 181 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.68 | |||||
| 191 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 201 | C8902601 | Insert, Control |
|
- | |||||
| 211 | 12446512 | Hinge, Ctr - E Ct (b) |
|
- | |||||
| 231 | D7795826 | Knob, Control (wht) |
|
- | |||||
| 261 | R0161050 | Damper Control Kit |
|
$ 120.41 | |||||
| 312 | 12045103 | Grille, Toe (blk) |
|
- | |||||
| 321 | 12045401 | Cover-ref Cont |
|
- | |||||
| 322 | 10551502 | Clip, Toe Grille |
|
$ 5.84 | |||||
| 331 | 12060101 | Insul, Damper |
|
- | |||||
| 381 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 401 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.72 | |||||
| 411 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 441 | WPM0274062 | Shim, Non Metal (blk) (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 511 | 12076301 | Cover, Hinge (blk) |
|
- | |||||
| 552 | D7874403 | Cover-fl Tb/plug |
|
- | |||||
| 562 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 601 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 631 | 10391302 | Support, Pin |
|
- | |||||
| 651 | M0274063 | Shim, Non Metal (blk) |
|
- | |||||
| 672 | 10420007 | Shelf, Ref Door |
|
- | |||||
| 682 | 12163303 | Door, Dairy |
|
- | |||||
| 692 | 12163202 | Shelf, Dairy |
|
- | |||||
| 802 | M0216531 | Screw |
|
- | |||||
| 812 | D7878825 | Cover, Frz Cont |
|
- | |||||
| 841 | 10493302 | Cover, Frz Light |
|
- | |||||
| 851 | M0238846 | Screw-sm |
|
- | |||||
| 861 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 1131 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 8.17 | |||||
| 1151 | M0311703 | Plug, Button (blk) |
|
- | |||||
| 1181 | M0270538 | Washer |
|
- | |||||
| 1551 | 12056201 | Shield, Ref Light Sw |
|
- | |||||
| 1561 | 12056301 | Cover, Ref Light |
|
- | |||||
| 1601 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 | |||||
| 1651 | W11384469 | Switch, Light (Replaces: C3680310) |
|
Immediately | $ 39.09 | ||||
| 9011 | 12545201 | Shim, Posi Pin |
|
- |
