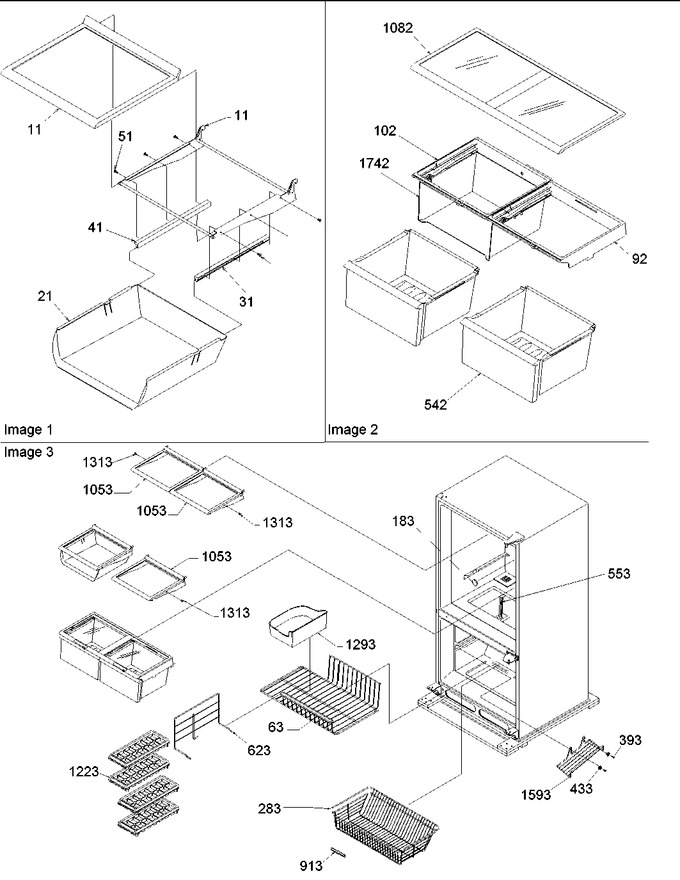

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12024802 | Shelf, Party Tray |
|
- | |||||
| 21 | 12046001 | Tray, Party |
|
- | |||||
| 31 | 12046101 | Glide, Party (lt) |
|
- | |||||
| 41 | 12046102 | Glide, Party (rt) |
|
- | |||||
| 51 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 63 | 12204705 | Shelf, Frz Glide |
|
- | |||||
| 92 | 12079906Q | Assy, Crisper Frame |
|
- | |||||
| 102 | 12079905Q | Assy, Ref Deli |
|
- | |||||
| 183 | M0310342 | Plug, Button (wht) |
|
- | |||||
| 283 | 12433801 | Basket, Freezer |
|
- | |||||
| 393 | WP67006908 | Screw (Replaces: M0230919) |
|
Immediately | $ 8.78 | ||||
| 433 | 10972101 | Spacer, Ice Rack |
|
$ 7.82 | |||||
| 542 | 12032001 | Pan, Crisper |
|
- | |||||
| 553 | 10461902 | Post-crisp Supp |
|
$ 26.54 | |||||
| 623 | D7806002 | Divider, Wire |
|
- | |||||
| 913 | 10508506 | Handle, Basket/shelf |
|
- | |||||
| 1053 | 12024801 | Shelf, Glide |
|
- | |||||
| 1082 | 12024902 | Shelf, Top Crisper |
|
- | |||||
| 1223 | WP841180A | Ice Tray (Replaces: D7725402) |
|
Immediately | $ 47.84 | ||||
| 1293 | 12045503 | Pan, Ice |
|
- | |||||
| 1313 | 10875101 | Stop, Shelf |
|
- | |||||
| 1593 | 12228201 | Rack, Ice Tray |
|
- | |||||
| 1742 | 12045201 | Sleeve, Mk |
|
- |
