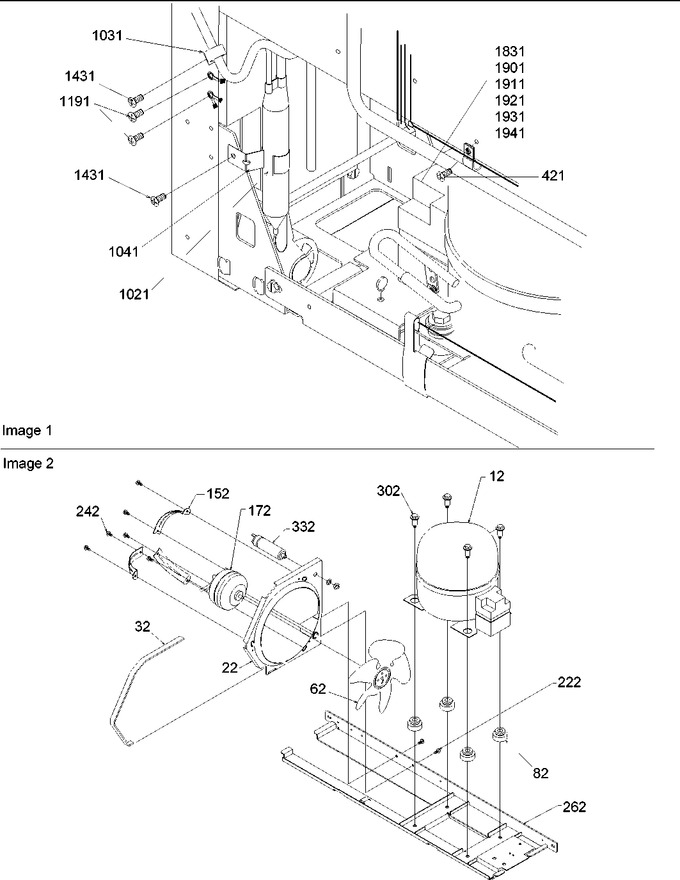

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | W10309997 | Compressor (220/230 Vac 50hz) (Replaces: Y10740301) |
|
$ 583.93 | |||||
| 22 | 12051110 | Shroud, Cond Fan-e Ct |
|
- | |||||
| 32 | A3030359 | Gasket |
|
- | |||||
| 62 | B5742604 | Blade, Fan |
|
- | |||||
| 82 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 152 | 10582501 | Bracket, Cond. Motor |
|
- | |||||
| 172 | D7846901 | Motor-condenser |
|
- | |||||
| 222 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 242 | M0223816 | Screw, Tr |
|
$ 5.27 | |||||
| 262 | 12152903 | Weld, Comp Frnt |
|
- | |||||
| 302 | M0221523 | Screw, Shldr |
|
- | |||||
| 332 | W10848274 | Capacitor (Replaces: 10958301) |
|
$ 185.85 | |||||
| 421 | M0227217 | Screw, Sm |
|
- | |||||
| 1021 | WPB2150504 | Drier (Replaces: B2150504) |
|
$ 136.98 | |||||
| 1031 | M0102327 | Clamp |
|
- | |||||
| 1041 | 10547002 | Clip, Drier |
|
- | |||||
| 1191 | WP489399 | Screw, Ca (Replaces: M0239216) |
|
$ 7.30 | |||||
| 1431 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 1831 | 10899701 | Cover, Terminal |
|
- | |||||
| 1901 | 10899501 | Clamp, Term. Cover |
|
- | |||||
| 1911 | 12192501 | Clamp-cord |
|
- | |||||
| 1921 | 12192601 | Assy, Screw Clamp |
|
- | |||||
| 1931 | M0239015 | Screw-mach |
|
- | |||||
| 1941 | M0239018 | Screw, Machine |
|
- | |||||
| NI | 12459101 | Assy, Power Cord |
|
- |
