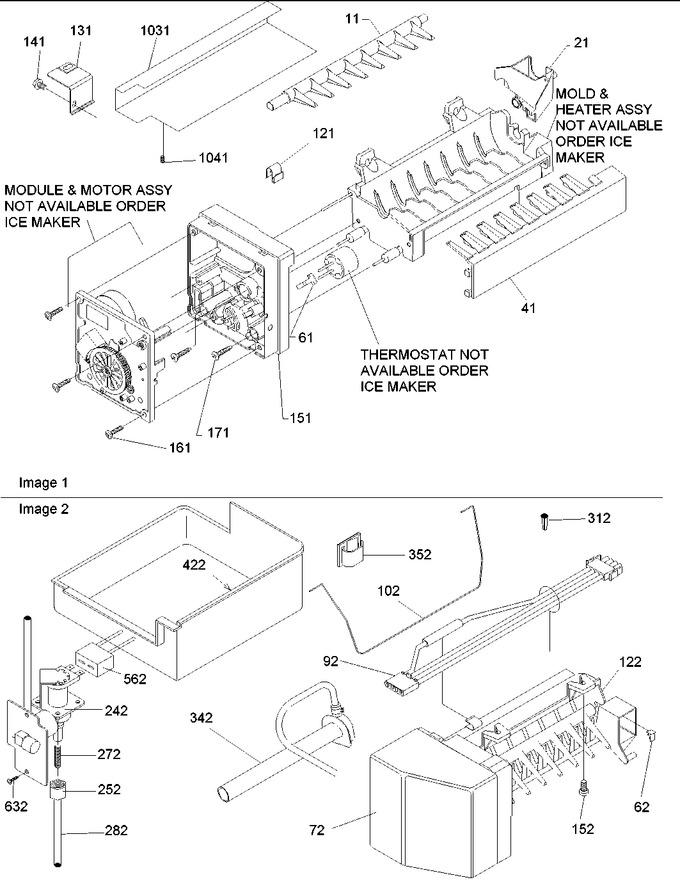

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WP627843 | Ejector (Replaces: R0183119) |
|
$ 87.78 | |||||
| 21 | WP628356 | Cup, Water Fill/bearing (Replaces: R0156839) |
|
$ 53.75 | |||||
| 41 | WP2182124 | Stripper, Ice (Replaces: R0183120) |
|
$ 90.35 | |||||
| 61 | WP2315522 | Retainer (Replaces: R0191094) |
|
$ 11.60 | |||||
| 62 | B5720302 | Clip |
|
- | |||||
| 72 | WPW10289690 | Cover, Ice Maker (Replaces: 10519806) |
|
Immediately | $ 8.82 | ||||
| 92 | 10179201 | Harness Im Gg |
|
- | |||||
| 102 | WP67004028 | Arm, I.m. Shut-off (Replaces: 10884401) |
|
Immediately | $ 95.92 | ||||
| 121 | WP628379 | Clip, Thermal Fuse (Replaces: 10319801) |
|
$ 11.10 | |||||
| 122 | WPW10190972 | Ice Maker Assy. (220v-50hz)x (Replaces: D7846305) |
|
$ 177.49 | |||||
| 131 | B8391802 | Bracket, I/m |
|
- | |||||
| 141 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 7.30 | ||||
| 151 | WP2195914 | Support (Replaces: R0183121) |
|
$ 109.80 | |||||
| 152 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 161 | R0186041 | Screw |
|
- | |||||
| 171 | R0186040 | Screw |
|
- | |||||
| 242 | 12490802 | Valve, Water |
|
- | |||||
| 252 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 11.51 | |||||
| 272 | A1055101 | Spring, Antikink |
|
- | |||||
| 282 | WPB5705307 | Tubing Plastic (Replaces: B5705308) |
|
$ 13.05 | |||||
| 312 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| 342 | W11176463 | Elbow, Fill Tube (Replaces: 10463201) |
|
Immediately | $ 119.86 | ||||
| 352 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 8.17 | |||||
| 422 | WP67001255 | Pan, Ice (Replaces: 10476207) |
|
$ 213.23 | |||||
| 562 | 10525901 | Harness, Water Valve |
|
$ 8.02 | |||||
| 632 | M0227217 | Screw, Sm |
|
- | |||||
| 1031 | D7846203 | Shield, Ice Maker |
|
- | |||||
| 1041 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| NI | 10527051 | Instr,install(ic55) |
|
- | |||||
| NI | A3036901 | Label Warranty |
|
- | |||||
| NI | 10834701 | Label, Im |
|
- | |||||
| NI | 10244905 | Coupling |
|
- | |||||
| NI | M0311301 | Plug Button |
|
- | |||||
| NI | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| NI | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 |
