SELECT A DIAGRAM

01 - Bottom Hinges & Rollers


02 - Cabinet Back


03 - Condenser & High Voltage Box


04 - Control/hinges & Accessories


05 - Deli & Crisper Assy


06 - Door Assy


07 - Evaporator Area


08 - Ice Maker Assy & Parts


09 - Machine Compartment


10 - Shelf Ladders & Light Assy


11 - Shelving

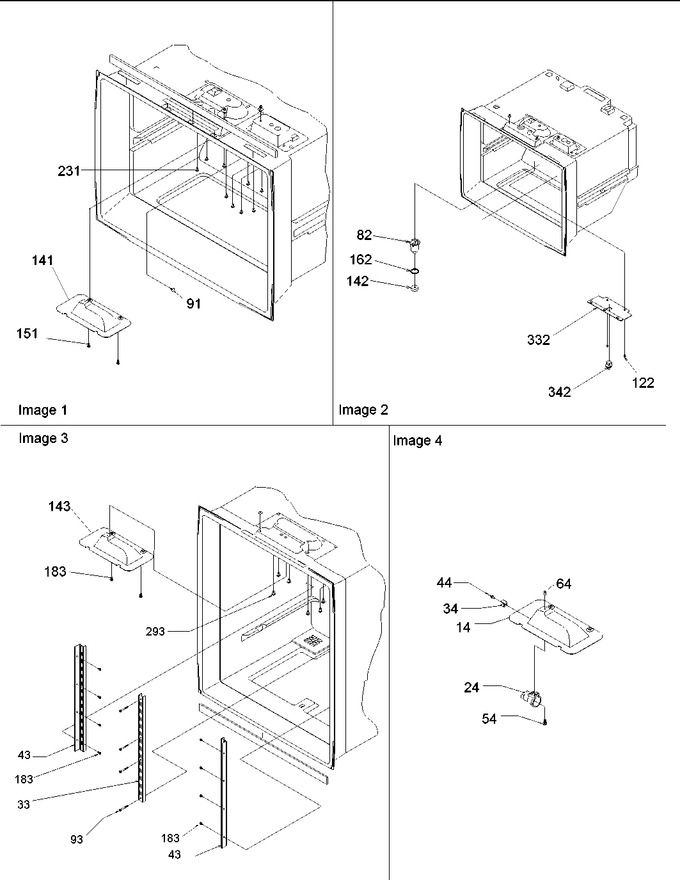

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	D7863904		Housing, Frz Light		Appelez-nous	-
24	D7845102		Socket, Lamp		Appelez-nous	-
33	12435801		Ladder, Center		Appelez-nous	-
34	M0320910		Term		Appelez-nous	-
43	12435701		Ladder, Side (l/r)		Appelez-nous	-
44	A4539626		Pop Rivet		Appelez-nous	-
54	M0213129		Screw		Appelez-nous	-
64	A1781112		Cap-vinyl Tube		Appelez-nous	-
82	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 51.50
91	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
93	M0231426		Screw		Appelez-nous	-
122	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
141	12266401Q		Assy,fz Light		Appelez-nous	-
142	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
143	12266401Q		Assy,fz Light		Appelez-nous	-
151	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
162	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
183	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
231	M0581001		Grommet, Screw		Appelez-nous	-
293	M0581001		Grommet, Screw		Appelez-nous	-
332	12056101		Cover, Frz Light Sw		Appelez-nous	-
342	W11384469		Switch, Light   (Replaces: C3680310)			Immediately	$ 39.09

    View Diagram in Separate Window       Print Part List
