Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11540183 Feed Tube Assembly Special Order $ 68.18

2 W10165274 Screw Special Order $ 13.47

3 WPW10498900 Sprayarm   (Replaces: W10498900) In-Stock Immediately $ 53.03

4 W11607104 Manifold   (Replaces: W10340681) In-Stock Immediately $ 64.31

5 W11729443 Feed Tube Retainer   (Replaces: W10328508) Special Order $ 14.81


    View Diagram in Separate Window     Print Icon   Print Part List

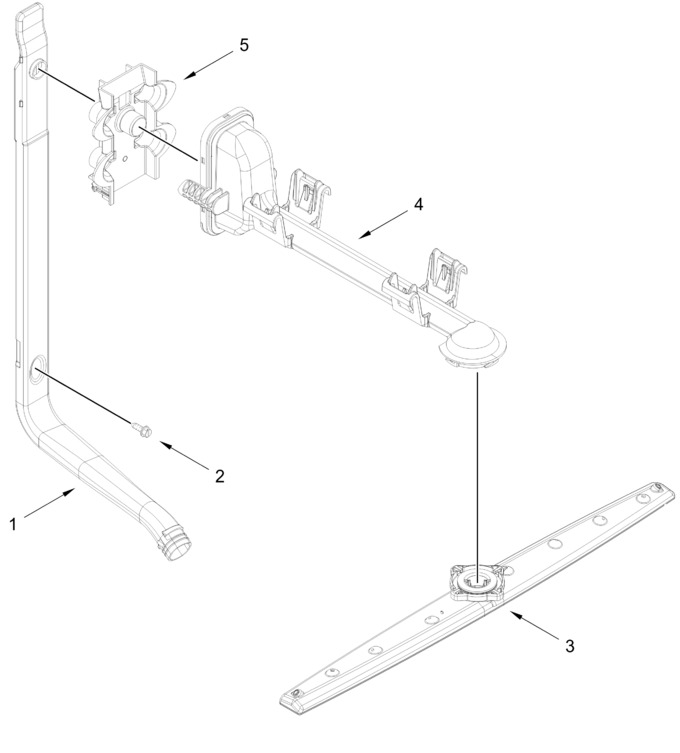

Diagram for GDBWH252SB0
