Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

2 W11806566 Arm, Hinge (left)   (Replaces: W11689169) In-Stock Immediately $ 71.77

3 W10850371 Stiffener, Door   (Replaces: W10803537) In-Stock Immediately $ 32.88

4 W11765426 Front Panel (black)   (Replaces: W10629475) Appelez-nous -
5 W11763736 Access Panel (black)   (Replaces: W11674252) In-Stock Immediately $ 42.25

6 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

7 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93

8 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

W11806609 Arm, Hinge (right)   (Replaces: W11689184) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

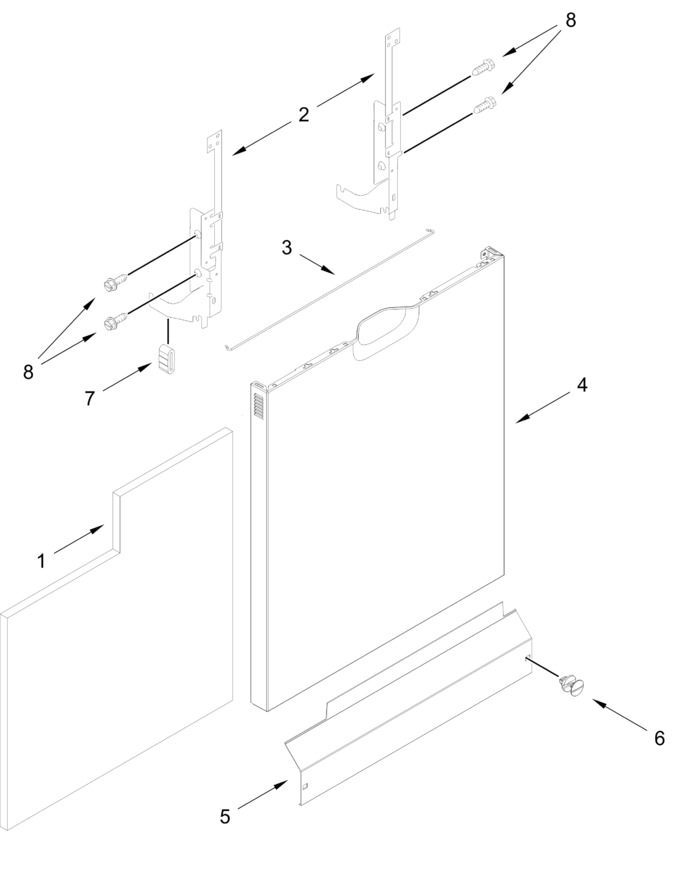

Diagram for GDBWH252SB0
