Diagram for Control Panel And Latch Parts
Control Panel And Latch Parts

Diagram for Door And Panel Parts
Door And Panel Parts

Diagram for Fill, Drain And Overfill Parts
Fill, Drain And Overfill Parts

Diagram for Inner Door Parts
Inner Door Parts

Diagram for Lower Rack Parts
Lower Rack Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Pump, Washarm And Motor Parts
Pump, Washarm And Motor Parts

Diagram for Tub And Frame Parts
Tub And Frame Parts

Diagram for Upper Rack And Track Parts
Upper Rack And Track Parts

Diagram for Upper Wash And Rinse Parts
Upper Wash And Rinse Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10348409 Screw   (Replaces: W10348409) In-Stock Immediately $ 8.20

2 W11676896 Inner Door (also Order Vent Gasket)   (Replaces: W11467680) In-Stock Immediately $ 349.21

3 WPW10482094 Cover, Dispenser   (Replaces: W10482094) In-Stock Immediately $ 32.36

4 WP8269259 Gasket, Vent   (Replaces: 8269259) In-Stock Immediately $ 63.50

5 WPW10329609 Vent Assembly (also Order Vent Gasket)   (Replaces: W10329609) In-Stock Immediately $ 86.34

6 W11819720 Dispenser, Assembly   (Replaces: W11651621) In-Stock Immediately $ 127.84

7 W11697182 Wiring Harness   (Replaces: W11595228) In-Stock Immediately $ 127.84

8 WPW10177098 Screw   (Replaces: W10177098) In-Stock Immediately $ 8.02

9 W10837566 Seal, Console/door   (Replaces: W10274923) In-Stock Immediately $ 86.84

10 WPW10462232 Bracket, Dispenser   (Replaces: W10462232) Special Order $ 37.79

11 WPW10524919 Knob, Rinse Aid   (Replaces: W10524919) In-Stock Immediately $ 30.06

12 W10907613 Bezel, Vent Appelez-nous -
13 WPW10653840 Latch Assembly (includes Switch)   (Replaces: W10574864) In-Stock Immediately $ 34.18


    View Diagram in Separate Window     Print Icon   Print Part List

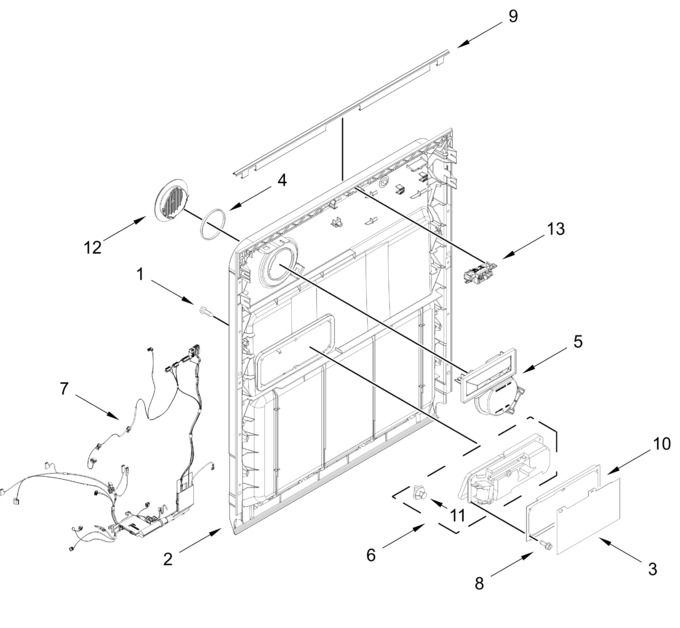

Diagram for GDBWH252SB0
