Control Panel And Latch Parts


Door And Panel Parts


Fill, Drain And Overfill Parts


Inner Door Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts

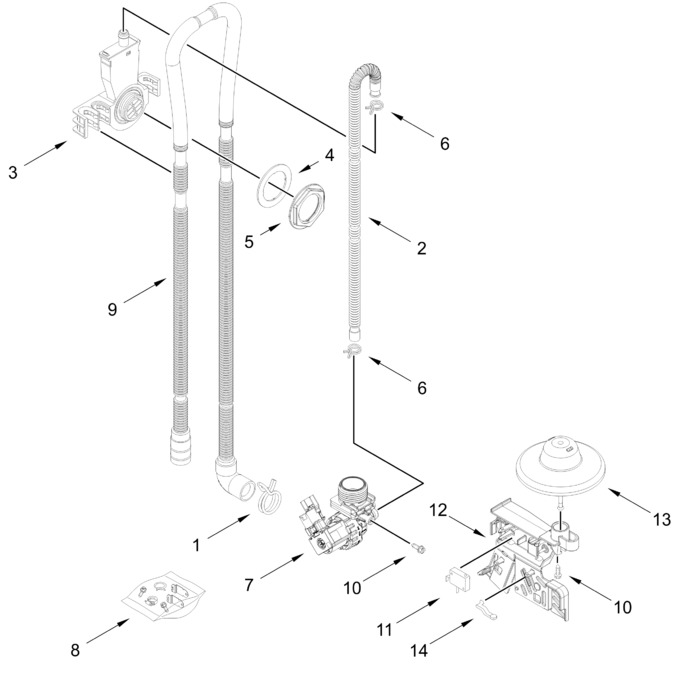

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11806544		Clamp, Hose   (Replaces: W11758980)		Appelez-nous	-
2	W10878507		Inlet Hose   (Replaces: W10769066)			Immediately	$ 77.06
3	WPW10195536		Inlet, Water (also Order Water Inlet Gasket)   (Replaces: W10195536)			Immediately	$ 86.31
4	WP8531323		Gasket, Water Inlet   (Replaces: 8531323)			Immediately	$ 39.11
5	W11765082		Nut, Inlet (also Order Water Inlet Gasket)   (Replaces: W10508677)		Appelez-nous	-
6	WP596669		Clamp, Hose   (Replaces: 371505)			Immediately	$ 8.40
7	W11684258		Fill Valve Assembly   (Replaces: W11669944)			Immediately	$ 63.52
8	W11807873		Miscellaneous Parts Bag (includes (2) Screws, (2) Clamps, (2) Brackets)   (Replaces: W11770376)		Appelez-nous	-
9	WPW10545278		Drain Loop With Check Valve Assembly   (Replaces: W10545278)			Immediately	$ 74.41
10	WP304231		Screw   (Replaces: 304231)			Immediately	$ 7.75
11	WPW10195039		Switch, Overfill Control   (Replaces: W10195039)			Immediately	$ 73.73
12	WPW10316267		Standpipe, Overfill   (Replaces: W10316267)				$ 30.38
13	W11814886		Float & Retainer Assembly   (Replaces: W11612592)			Immediately	$ 75.38
14	WPW10195037		Lever, Overfill Switch   (Replaces: W10195037)			Immediately	$ 11.18
