SELECT A DIAGRAM

Control Panel And Latch Parts


Door And Panel Parts


Fill, Drain And Overfill Parts


Inner Door Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts

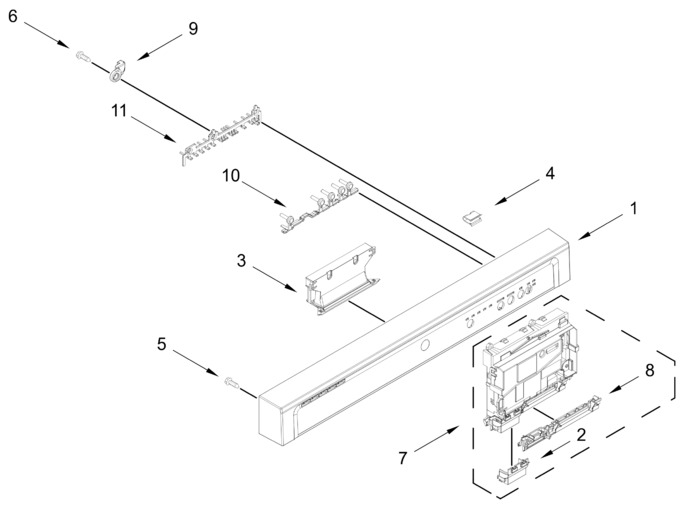

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11818699		Console Assembly (black)   (Replaces: W11795553)		Appelez-nous	-
2	W11305293		Box, Connector   (Replaces: W10825638)			Immediately	$ 236.98
3	W11568629		Handle, Pocket (black)   (Replaces: W10629511)			Immediately	$ 23.21
4	W10815836		Clip, Panel   (Replaces: W10485367)				$ 7.86
5	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.19
6	W11700520		Screw   (Replaces: 3400061)				$ 13.60
7	W11683481		Control, Electronic   (Replaces: W11665216)			Immediately	$ 328.00
8	W11305293		Brace, Connector   (Replaces: W10825369)			Immediately	$ 236.98
9	W10629551		Tab, Control				$ 20.82
10	W10849355		Button Tree   (Replaces: W10629499)				$ 25.12
11	W10839423		Light Pipe   (Replaces: W10629497)			Immediately	$ 25.39

    View Diagram in Separate Window       Print Part List
