SELECT A DIAGRAM

Control Panel And Outer Door Parts


Dishrack Parts


Fill Drain And Base Parts

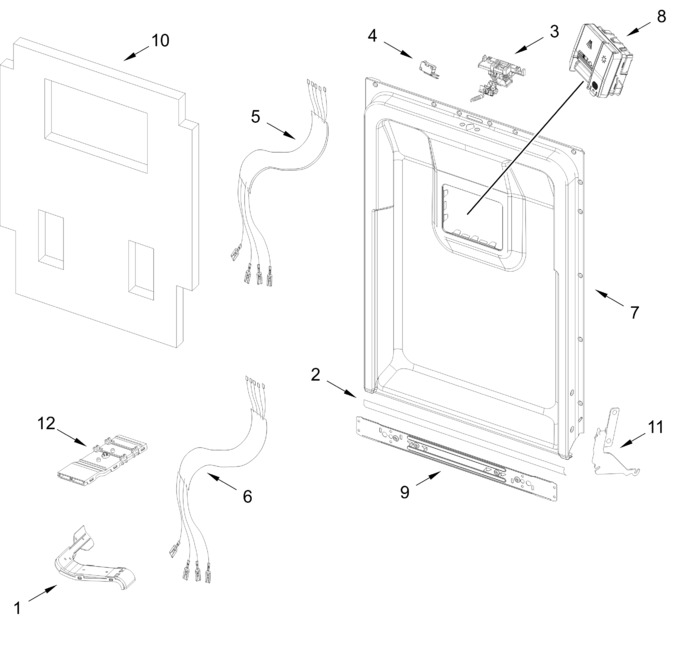

Inner Door Parts


Optional Parts (not Included)


Pump And Motor Parts


Tub And Frame Parts


Wash System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826865		Holder, Upper Harness   (Replaces: W11825808)		Appelez-nous	-
2	W11826818		Seal, Door Bottom   (Replaces: W11825771)		Appelez-nous	-
3	W11826814		Door Switch Assembly   (Replaces: W11825767)		Appelez-nous	-
4	W11826851		Switch, Door   (Replaces: W11825799)		Appelez-nous	-
5	W11826765		Wiring Harness   (Replaces: W11826316)		Appelez-nous	-
6	W11826837		Wiring Harness   (Replaces: W11825787)		Appelez-nous	-
7	W11826809		Inner Door Assembly   (Replaces: W11825764)		Appelez-nous	-
8	W11826852		Dispenser   (Replaces: W11825800)		Appelez-nous	-
9	W11826802		Door Stiffener   (Replaces: W11825757)		Appelez-nous	-
10	W11826759		Insulation, Door   (Replaces: W11826315)		Appelez-nous	-
11	W11826800		Hinge Assembly (left)   (Replaces: W11825755)		Appelez-nous	-
12	W11826866		Holder, Top Harness   (Replaces: W11825809)		Appelez-nous	-
	W11826801		Hinge Assembly (right)   (Replaces: W11825756)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
