Control Panel And Outer Door Parts


Dishrack Parts


Fill Drain And Base Parts


Inner Door Parts


Optional Parts (not Included)


Pump And Motor Parts


Tub And Frame Parts


Wash System Parts

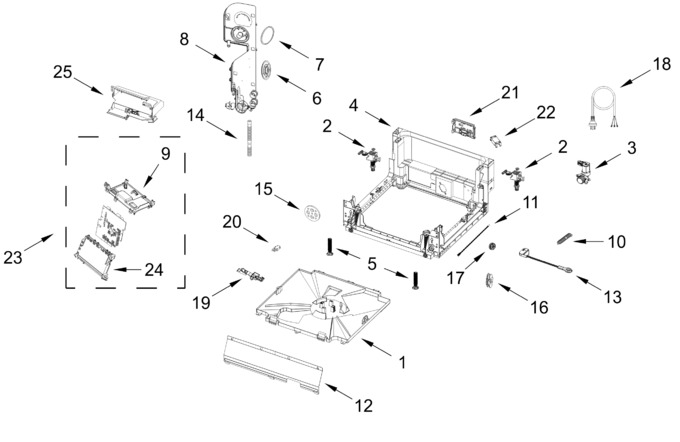

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826788		Cover, Base   (Replaces: W11825751)		Appelez-nous	-
2	W11826782		Leveling Leg, Adjustable (left, Rear)   (Replaces: W11825749)		Appelez-nous	-
3	W11826848		Inlet Valve   (Replaces: W11825796)		Appelez-nous	-
4	W11826819		Base Assembly   (Replaces: W11825772)		Appelez-nous	-
5	W11826792		Leveling Leg   (Replaces: W11825752)		Appelez-nous	-
6	W11826856		Nut, Air Breather   (Replaces: W11825803)		Appelez-nous	-
7	W11826855		Gasket   (Replaces: W11825802)		Appelez-nous	-
8	W11826853		Air Breather   (Replaces: W11825801)		Appelez-nous	-
9	W11826843		Cover, Back Pcb   (Replaces: W11825792)		Appelez-nous	-
10	W11826755		Spring, Door   (Replaces: W11826312)		Appelez-nous	-
11	W11826786		Adjuster, Rear Foot   (Replaces: W11825750)		Appelez-nous	-
12	W11826805		Acoustic Panel   (Replaces: W11825760)		Appelez-nous	-
13	W11826757		Door Rope   (Replaces: W11826313)		Appelez-nous	-
14	W11841487		Drain Hose   (Replaces: W11841087)		Appelez-nous	-
15	W11826877		Float   (Replaces: W11825819)		Appelez-nous	-
16	W11835890		Upper, Hinge Roller   (Replaces: W11835692)		Appelez-nous	-
17	W11835894		Wheel, Hinge   (Replaces: W11835694)		Appelez-nous	-
18	W11826839		Power Cord   (Replaces: W11825789)		Appelez-nous	-
19	W11826849		Standpipe, Overfill   (Replaces: W11825797)		Appelez-nous	-
20	W11826850		Switch, Overfill Control   (Replaces: W11825798)		Appelez-nous	-
21	W11826874		Pcb Box   (Replaces: W11825816)		Appelez-nous	-
22	W11826876		Bracket, Feed Tube   (Replaces: W11825818)		Appelez-nous	-
23	W11830191		Control, Electronic   (Replaces: W11826318)		Appelez-nous	-
24	W11826842		Cover, Front Pcb   (Replaces: W11825791)		Appelez-nous	-
25	W11826878		Pcb Protector   (Replaces: W11825820)		Appelez-nous	-
	W11826838		Junction Box Assembly   (Replaces: W11825788)		Appelez-nous	-
	W11835909		Hose, Drain   (Replaces: W11835732)		Appelez-nous	-
	W11835908		Extension, Drain Hose   (Replaces: W11835728)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11826778		Leveling Leg, Adjustable (right, Rear)   (Replaces: W11825748)		Appelez-nous	-
