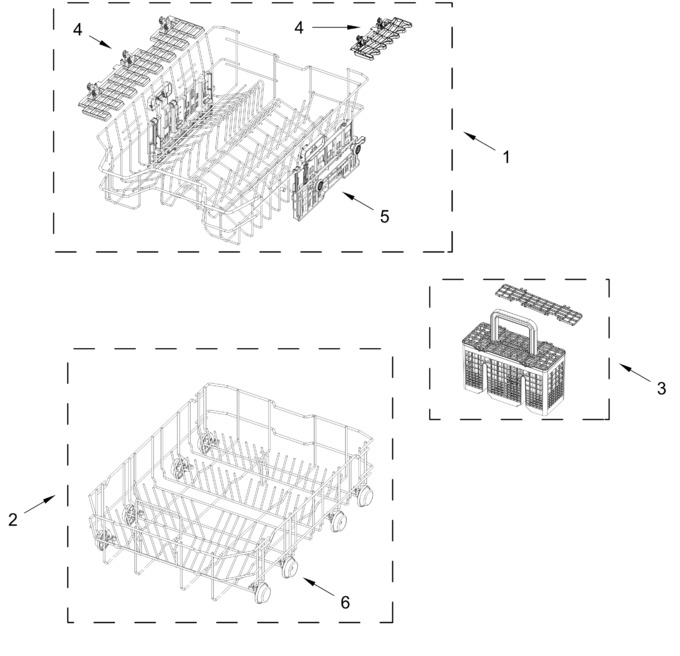

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826823		Upper Rack Assembly   (Replaces: W11825775)		Appelez-nous	-
2	W11826824		Lower Rack Assembly   (Replaces: W11825776)		Appelez-nous	-
3	W11826827		Silverware Basket Assembly   (Replaces: W11825778)		Appelez-nous	-
4	W11826820		Cupshelf (short)   (Replaces: W11825773)		Appelez-nous	-
5	W11835903		Rack Adjuster Assembly   (Replaces: W11835706)		Appelez-nous	-
6	W11826826		Wheel & Transport Assembly   (Replaces: W11825777)		Appelez-nous	-
	W11835902		Foil, Vapor   (Replaces: W11835705)		Appelez-nous	-
	W11826822		Cupshelf (long)   (Replaces: W11825774)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
