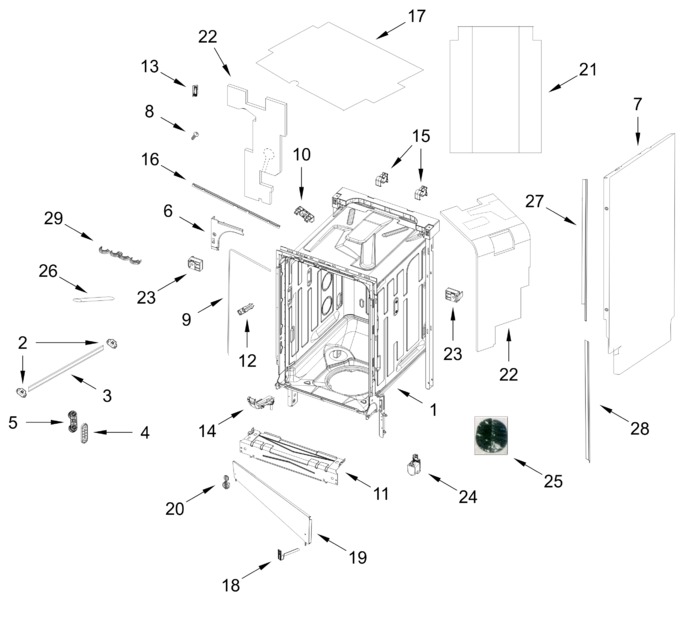

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI0FFB114D644D50E0904DAEA0B7813935		Tub Assembly (not Serviced)		Appelez-nous	-
2	W11826830		Stop, Track   (Replaces: W11825781)		Appelez-nous	-
3	W11826829		Track Assembly   (Replaces: W11825780)		Appelez-nous	-
4	W11826831		Mount, Wheel Assembly   (Replaces: W11825782)		Appelez-nous	-
5	W11826828		Wheel   (Replaces: W11825779)		Appelez-nous	-
6	W11835900		Bracket, Corner (left)   (Replaces: W11835702)		Appelez-nous	-
7	W11826752		Side Panel (left)   (Replaces: W11826310)		Appelez-nous	-
8	W11835899		Plastic Screw   (Replaces: W11835701)		Appelez-nous	-
9	W11826817		Gasket, Tub   (Replaces: W11825770)		Appelez-nous	-
10	W11826816		Hook, Door Latch   (Replaces: W11825769)		Appelez-nous	-
11	W11826812		Panel, Lower Acoustic   (Replaces: W11825765)		Appelez-nous	-
12	W11826815		Strike, Latch   (Replaces: W11825768)		Appelez-nous	-
13	W11834835		Bracket, Pcb   (Replaces: W11834605)		Appelez-nous	-
14	W11826864		Siphon, Overflow   (Replaces: W11825807)		Appelez-nous	-
15	W11826873		Bracket, Water Inlet Valve   (Replaces: W11825815)		Appelez-nous	-
16	W11826875		Seal, Door/console   (Replaces: W11825817)		Appelez-nous	-
17	W11834786		Shield, Top Tub Sound   (Replaces: W11834579)		Appelez-nous	-
18	W11834787		Bracket (left)   (Replaces: W11834580)		Appelez-nous	-
19	W11835896		Kick Plate (32.28in)   (Replaces: W11835697)		Appelez-nous	-
20	W11834785		Lock, Kickplate   (Replaces: W11834582)		Appelez-nous	-
21	W11834789		Shield, Rear Tub Sound   (Replaces: W11834583)		Appelez-nous	-
22	W11826807		Shield, Tub Sound (left)   (Replaces: W11825762)		Appelez-nous	-
23	W11834791		Support, Corner Bracket (left)   (Replaces: W11834586)		Appelez-nous	-
24	W11834783		Filter, Line   (Replaces: W11834603)		Appelez-nous	-
25	W11834834		Gasket, Bottom Tray   (Replaces: W11834604)		Appelez-nous	-
26	W11835910		Hose   (Replaces: W11835734)		Appelez-nous	-
27	W11831614		Seal, Sound (left)   (Replaces: W11831611)		Appelez-nous	-
28	W11835911		Cover, Sound Seal (left, With Adhesive)   (Replaces: W11835737)		Appelez-nous	-
29	W11835913		Lock, Drain Hose   (Replaces: W11835739)		Appelez-nous	-
	W11834792		Support, Corner Bracket (right)   (Replaces: W11834587)		Appelez-nous	-
	W11826806		Shield, Tub Sound (right)   (Replaces: W11825761)		Appelez-nous	-
	W11826754		Side Panel (right)   (Replaces: W11826311)		Appelez-nous	-
	W11835912		Cover, Sound Seal (right, With Adhesive)   (Replaces: W11835738)		Appelez-nous	-
	W11835901		Bracket, Corner (right)   (Replaces: W11835704)		Appelez-nous	-
	W11835898		Kick Plate (36.22in)   (Replaces: W11835700)		Appelez-nous	-
	W11831615		Seal, Sound (right)   (Replaces: W11831612)		Appelez-nous	-
	W11835897		Kick Plate (34.25in)   (Replaces: W11835699)		Appelez-nous	-
	W11834788		Bracket (right)   (Replaces: W11834581)		Appelez-nous	-
