SELECT A DIAGRAM

Control Panel And Outer Door Parts


Dishrack Parts


Fill Drain And Base Parts


Inner Door Parts


Optional Parts (not Included)


Pump And Motor Parts


Tub And Frame Parts


Wash System Parts

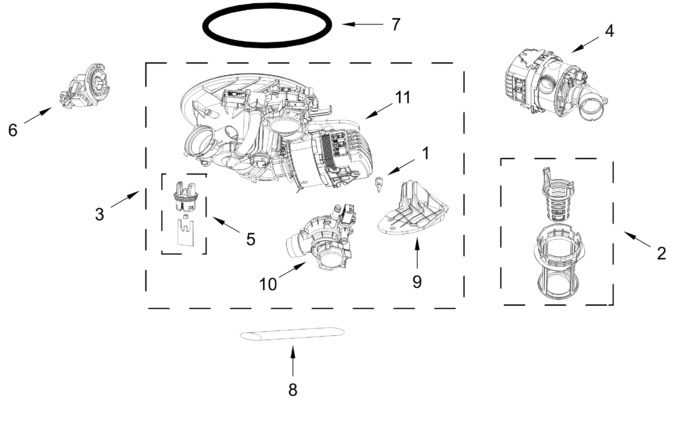

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11834832		Dampener, Pump   (Replaces: W11834601)		Appelez-nous	-
2	W11826869		Filter Cup Assembly   (Replaces: W11825812)		Appelez-nous	-
3	W11833292		Sump & Motor Assembly   (Replaces: W11833071)		Appelez-nous	-
4	W11834790		Motor   (Replaces: W11834584)		Appelez-nous	-
5	W11835914		Turbidity Sensor   (Replaces: W11835724)		Appelez-nous	-
6	W11826835		Pump   (Replaces: W11825785)				$ 153.02
7	W11826872		Sealing Gasket   (Replaces: W11825814)		Appelez-nous	-
8	W11826871		Hose, Valve Counter   (Replaces: W11825813)		Appelez-nous	-
9	W11834833		Bracket, Motor   (Replaces: W11834602)		Appelez-nous	-
10	W11834841		Motor, Diverter Valve   (Replaces: W11834609)		Appelez-nous	-
11	W11833291		Sump   (Replaces: W11833069)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
