SELECT A DIAGRAM

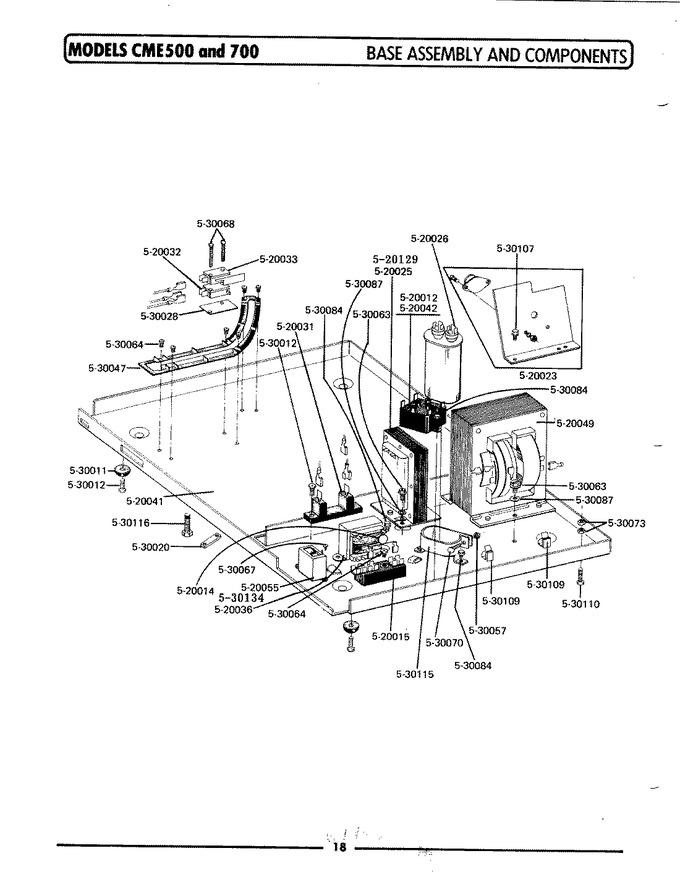

01 - Base Assembly & Components


02 - Blower, Magnetron & Exhaust Components


03 - Built-in Trim Kit


04 - Cabinet & Trim


05 - Control Panel & Microprocessor (cme500)


06 - Door Assembly


07 - Oven Cavity & Components (prior To 01)


08 - Oven Cavity & Components (series 01)


09 - Turn Tray & Supplies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Sub. To D510265LG		Diode   (Replaces: 520012)	00	Appelez-nous	-
2	520014		Varistor	00	Appelez-nous	-
3	520015		Terminal Block	00	Appelez-nous	-
4	520023		Triac W/heat Sink Plate Ass	00	Appelez-nous	-
5	520025		Filament Transformer	01	Appelez-nous	-
6	520026		Capacitor	00	Appelez-nous	-
7	520031		Rectifier	00	Appelez-nous	-
8	520032		Switch-interlock For Door	00	Appelez-nous	-
9	520033		Switch-safety For Door	00	Appelez-nous	-
10	520036		Transformer F/microprocesso	00	Appelez-nous	-
11	520041		Base Assembly	00	Appelez-nous	-
12	520042		Power Relay With Diode	00	Appelez-nous	-
13	520049		Power Transformer	00	Appelez-nous	-
14	520055		Lockout Relay	00	Appelez-nous	-
15	530011		Rubber Foot	00	Appelez-nous	-
16	WP250830		Screw   (Replaces: 530012)	00			$ 7.90
17	530020		Nut-switches To Bracket	00	Appelez-nous	-
18	530028		Insulator For Switches	00	Appelez-nous	-
19	530047		Guide	00	Appelez-nous	-
20	520129		Filament Transformer	00	Appelez-nous	-
21	530134		Wire Terminal	00	Appelez-nous	-
22	530057		Nut, No.6 - 32	00	Appelez-nous	-
23	530063		Screw, No.10-24 X 3/8 Inch	00	Appelez-nous	-
24	530064		Screw, No.6-32 X 1/4 Inch	00	Appelez-nous	-
25	530067		Screw, No.5-40 X 1/4 Inch	00	Appelez-nous	-
26	530068		Screw, No.4-40 X 1 Inch	00	Appelez-nous	-
27	530070		Screw, No.6-32 X 3/8 Inch	00	Appelez-nous	-
28	530073		Nut For Ground Screw	00	Appelez-nous	-
29	530084		Screw, No.8-32 X 1/4 Inch	00	Appelez-nous	-
30	530087		Lock Washer	00	Appelez-nous	-
31	530107		Screw, No.4-40	00	Appelez-nous	-
32	530109		Clip For Wire Harness	00	Appelez-nous	-
33	530110		Screw, No.8-32 X 1/2 Inch	00	Appelez-nous	-
34	530115		Bracket For Capacitor	00	Appelez-nous	-
35	530116		Bolt-stop For Door Arm	00	Appelez-nous	-
