Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 520011 Touch Pad Switch W/bracket 00 Appelez-nous -
2 520054 Microprocessor Board Assm 00 Appelez-nous -
3 530008 Control Panel 00 Appelez-nous -
4 530023 Trim For Control Panel 00 Appelez-nous -
5 530067 Screw, No.5-40 X 1/4 Inch 00 Appelez-nous -
6 530082 Screw, No.6 X 3/8 Inch 00 Appelez-nous -
7 530114 Fiber Washer 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

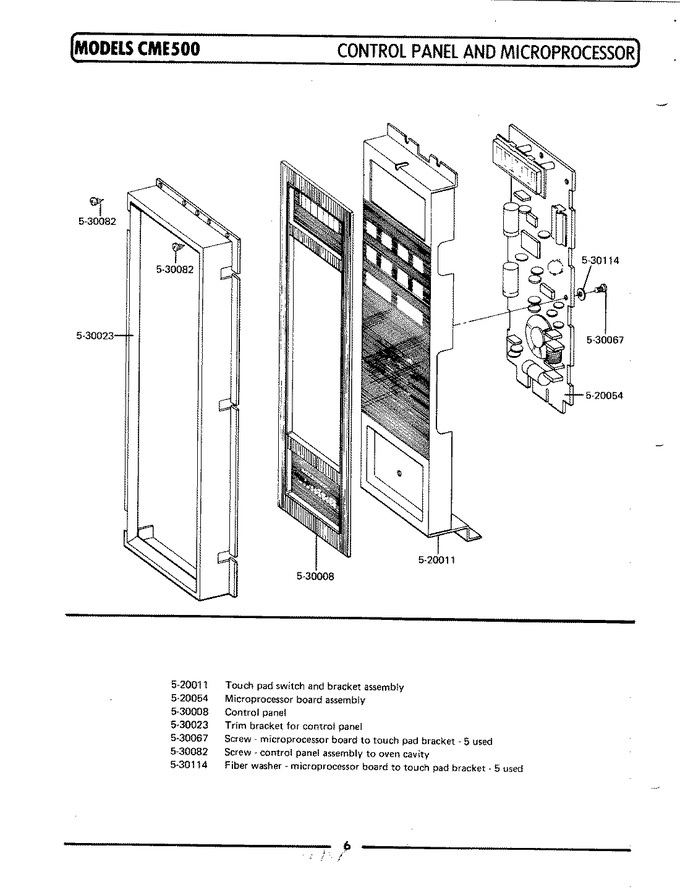

Diagram for CME500
