Diagram for 09 - Turn Tray & Supplies
09 - Turn Tray & Supplies


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 520030 Temperature Probe 00 Appelez-nous -
5 520070 Base For Turn Tray 00 Appelez-nous -
6 520071 Motor, Turntable 00 Appelez-nous -
7 530024 Cooking Tray 00 Appelez-nous -
8 530106 Table For Turn Tray 00 Appelez-nous -
9 530120 Rubber Fastener For Pin 00 Appelez-nous -
10 530121 Pin For Roller 00 Appelez-nous -
11 530122 Roller For Turn Tray 00 Appelez-nous -
NI 526301 Service Manual 00 Appelez-nous -
NI 520035 Cookbook 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

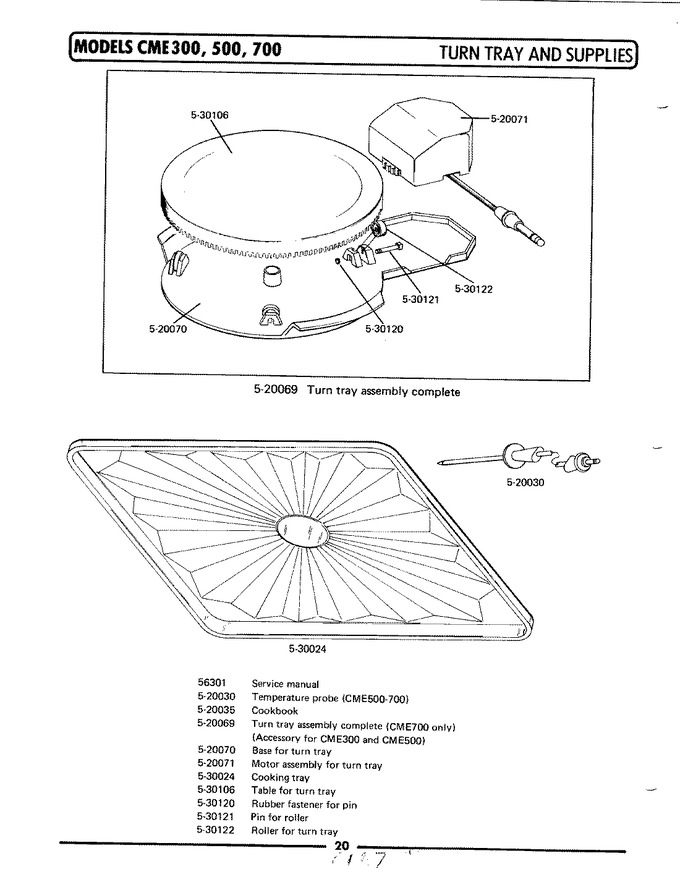

Diagram for CME500
