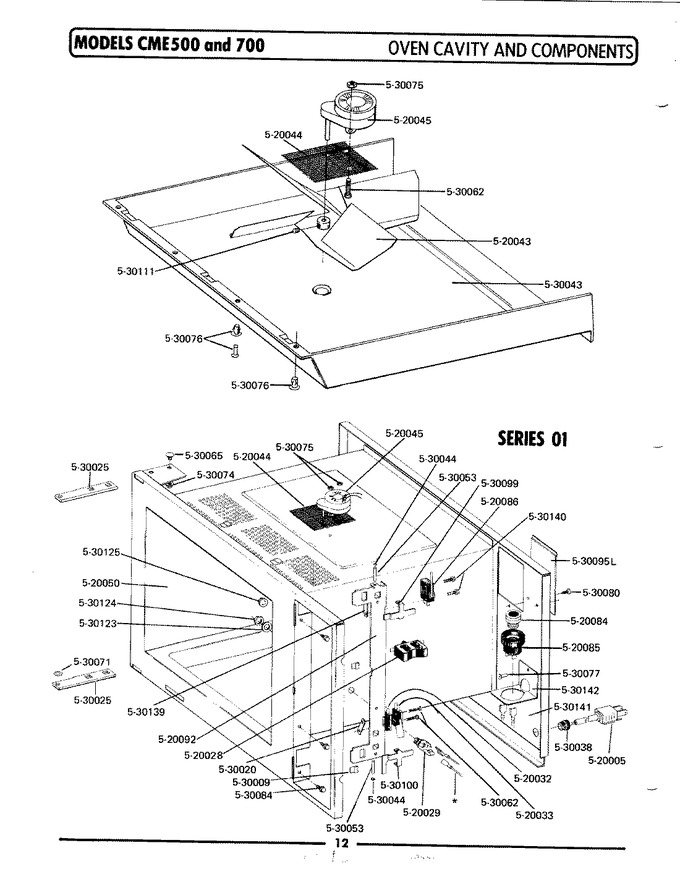

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 520005 | Power Cord | 01 |
|
- | ||||
| 4 | 520028 | Receptacle-temperature Prob | 01 |
|
- | ||||
| 5 | 520029 | Receptacle For Turn Tray | 01 |
|
- | ||||
| 7 | 520032 | Switch-interlock For Door | 01 |
|
- | ||||
| 8 | 520033 | Switch-safety For Door | 01 |
|
- | ||||
| 9 | 520043 | Stirrer Impeller | 01 |
|
- | ||||
| 10 | 520044 | Screen For Stirrer Motor | 01 |
|
- | ||||
| 11 | 520045 | Stirrer Motor | 01 |
|
- | ||||
| 12 | 520050 | Oven Cavity | 01 |
|
- | ||||
| 17 | 520084 | Fuse | 01 |
|
- | ||||
| 18 | 520085 | Fuse Holder | 01 |
|
- | ||||
| 19 | Y520086 | Interlock Switch | 01 |
|
- | ||||
| 23 | 520092 | Bracket Plate For Switch | 01 |
|
- | ||||
| 24 | 530009 | Fastener | 01 |
|
- | ||||
| 25 | 530020 | Nut-switches To Bracket | 01 |
|
- | ||||
| 26 | 530025 | Door Hinge-upper And Lower | 01 |
|
- | ||||
| 28 | 530038 | Grommet For Power Cord | 01 |
|
- | ||||
| 29 | 530043 | Cover For Stirrer | 01 |
|
- | ||||
| 30 | 530044 | Clip For Pin | 01 |
|
- | ||||
| 31 | 530053 | Pin For Switch Actuator | 01 |
|
- | ||||
| 32 | 530062 | Screw, No.4-40 X 1 Inch | 01 |
|
- | ||||
| 33 | 530065 | Screw, 1/4-20 X 1/2 Inch | 01 |
|
- | ||||
| 34 | 530071 | Washer-door Hinge Bracket | 01 |
|
- | ||||
| 35 | 530074 | Nut For Door Hinges | 01 |
|
- | ||||
| 36 | 530075 | Nut For Stirrer Motor | 01 |
|
- | ||||
| 37 | Y530076 | Plastic Rivet | 01 |
|
- | ||||
| 38 | 530077 | Rivet | 01 |
|
- | ||||
| 39 | W11233072 | Screw, No.8 X 3/8 Inch (Replaces: Y530080) | 01 |
|
Immediately | $ 13.25 | |||
| 40 | 530084 | Screw, No.8-32 X 1/4 Inch | 01 |
|
- | ||||
| 41 | 530095L | Bulb Access Cover-almond | 01 |
|
- | ||||
| 42 | 530099 | Actuator F/door Switch-uppe | 01 |
|
- | ||||
| 43 | 530100 | Actuator F/door Switch-lowe | 01 |
|
- | ||||
| 44 | 530111 | Set Screw For Stirrer | 01 |
|
- | ||||
| 45 | 530123 | Washer-turn Tray Receptacle | 01 |
|
- | ||||
| 46 | 530124 | Nut | 01 |
|
- | ||||
| 47 | 530125 | Nut-temp Probe Receptacle | 01 |
|
- | ||||
| 48 | 530139 | Nut | 01 |
|
- | ||||
| 49 | Y530140 | Screw | 01 |
|
- | ||||
| 50 | 530141 | Warning Label | 01 |
|
$ 6.64 | ||||
| 51 | 530142 | Support, Fuse Holder | 01 |
|
- | ||||
| NI | 520089 | Control Harness | 01 |
|
- | ||||
| NI | 520065 | Control Wire Harness | 01 |
|
- | ||||
| NI | 520063 | Main Wire Harness | 01 |
|
- | ||||
| NI | 520058 | Bracket For Door Switches | 01 |
|
- | ||||
| NI | 520030 | Temperature Probe | 01 |
|
- | ||||
| NI | Sub. To D510265LG | Fuse Holder (Replaces: 520018) | 01 |
|
- | ||||
| NI | 530035 | Warning Label-fuse Replace | 01 |
|
- | ||||
| NI | Y520016 | Fuse, Ceramic - 250v-15a | 01 |
|
- | ||||
| NI | 520090 | Main Wire Harness | 01 |
|
- |
