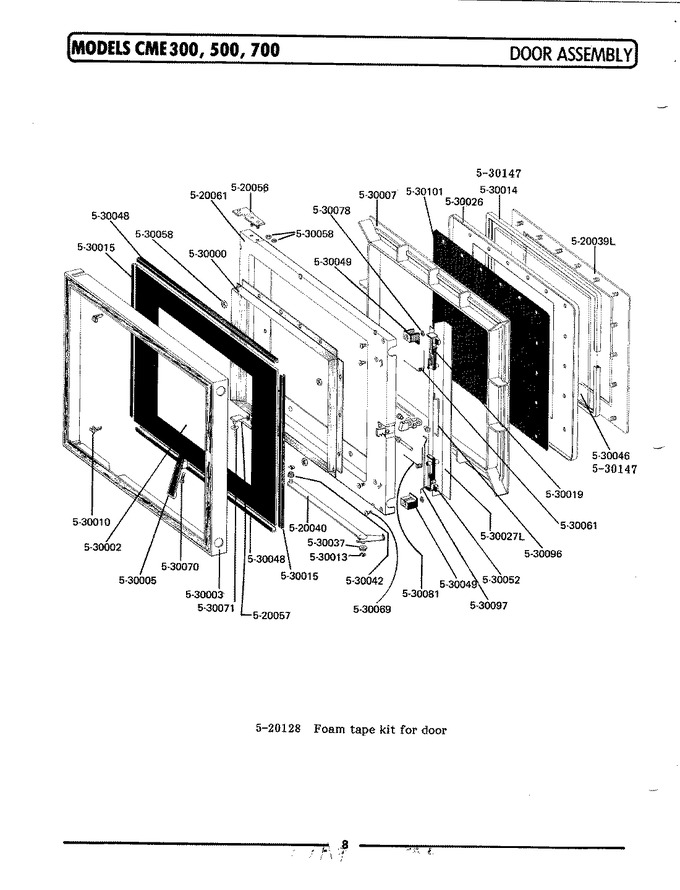

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	520039L		Inner Glass Retainer-almond	00	Appelez-nous	-
2	520040		Door Arm	00	Appelez-nous	-
3	520056		Door Hinge Bracket-upper	00	Appelez-nous	-
4	520057		Door Hinge Bracket-lower	00	Appelez-nous	-
5	520061		Inner Door With Pins	00	Appelez-nous	-
6	530000		Door Screen Retainer	00	Appelez-nous	-
7	530002		Outer Door Glass	00	Appelez-nous	-
8	530003		Door Frame	00	Appelez-nous	-
9	530005		Door Handle	00	Appelez-nous	-
10	530007		Door Choke Frame	00	Appelez-nous	-
11	530010		Clip For Door Frame	00	Appelez-nous	-
12	530013		Clip For Door Arm	00	Appelez-nous	-
13	530014		Gasket For Inner Glass	00	Appelez-nous	-
14	530015		Gasket For Outer Glass	00	Appelez-nous	-
15	530019		Door Latch-upper	00	Appelez-nous	-
17	530026		Door Seal Plate	00	Appelez-nous	-
18	530027L		Door Seal Latch-almond	00	Appelez-nous	-
19	530037		Bushing For Door Arm	00	Appelez-nous	-
22	530042		Bushing For Door Arm	00	Appelez-nous	-
23	530046		Inner Door Glass	00	Appelez-nous	-
24	530048		Gasket For Outer Glass	00	Appelez-nous	-
25	530049		Guide For Door Latch	00	Appelez-nous	-
27	530052		Door Latch-lower	00	Appelez-nous	-
28	530058		Nut, No.10 - 32	00	Appelez-nous	-
29	530061		Spring For Door Latch-upper	00	Appelez-nous	-
31	530069		Screw, No.8-32 X 3/8 Inch	00	Appelez-nous	-
32	530070		Screw, No.6-32 X 3/8 Inch	00	Appelez-nous	-
33	530071		Washer-door Hinge Bracket	00	Appelez-nous	-
34	530078		Nut, No.8 - 32	00	Appelez-nous	-
35	530081		Spring For Door Latch-lower	00	Appelez-nous	-
36	530096		Linkage For Door Latch-uppe	00	Appelez-nous	-
37	530097		Linkage For Door Latch-lowe	00	Appelez-nous	-
38	530101		Door Screen	00	Appelez-nous	-
39	530147		Inner Door Glass With Gaske	00	Appelez-nous	-
NI	530051		Pivot For Door Latch	00	Appelez-nous	-
NI	530021		Pivot Pin For Door Handle	00	Appelez-nous	-
NI	530039		Pivot Bushing For Door Latc	00	Appelez-nous	-
NI	530041		Bushing For Door Latch	00	Appelez-nous	-
NI	530061		Spring For Door Latch-upper	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
