Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10178402 Cover, O.c.back Appelez-nous -
2 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

3 B8310505 Cord, Power Appelez-nous -
4 M0103903 Clamp, Speed Appelez-nous -
5 M0232317 Screw Appelez-nous -
6 B5794201 Clamp Appelez-nous -
7 10547001 Clip, Drier Appelez-nous -
8 10178504 Cover - Wire Appelez-nous -
9 10554401 Harness, Cabinet Appelez-nous -
10 10178701 Grommet Wire Appelez-nous -
11 10178801 Grommet Wire Appelez-nous -
12 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

13 A3189336 Gasket, Foam Appelez-nous -
14 4007A Drier   (Replaces: B2150503) In-Stock Immediately $ 15.05

17 A3034801 Saddle Valve Appelez-nous -
18 10244901 Coupling Appelez-nous -
28 M0103903 Clamp, Speed Appelez-nous -

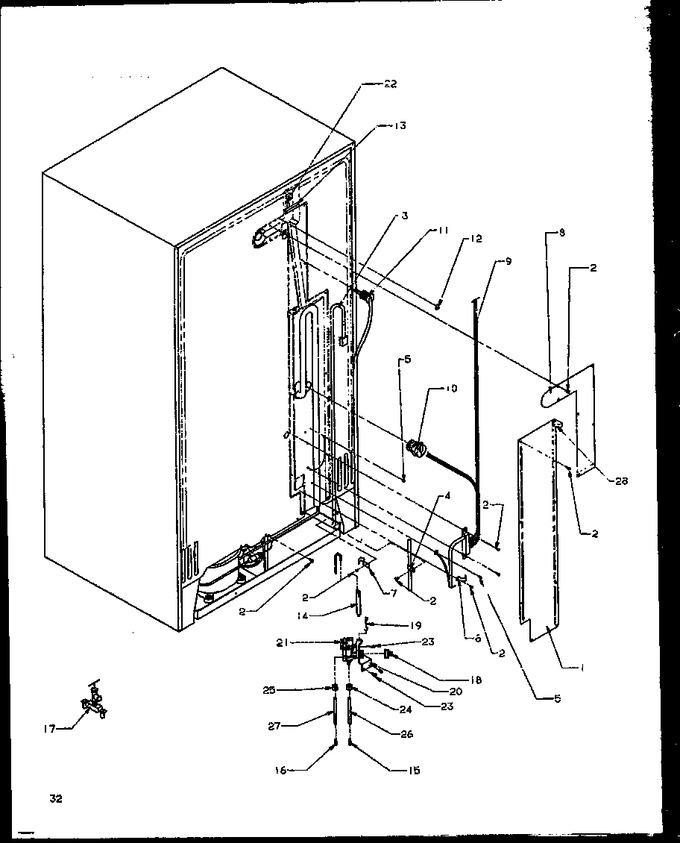

    View Diagram in Separate Window     Print Icon   Print Part List
