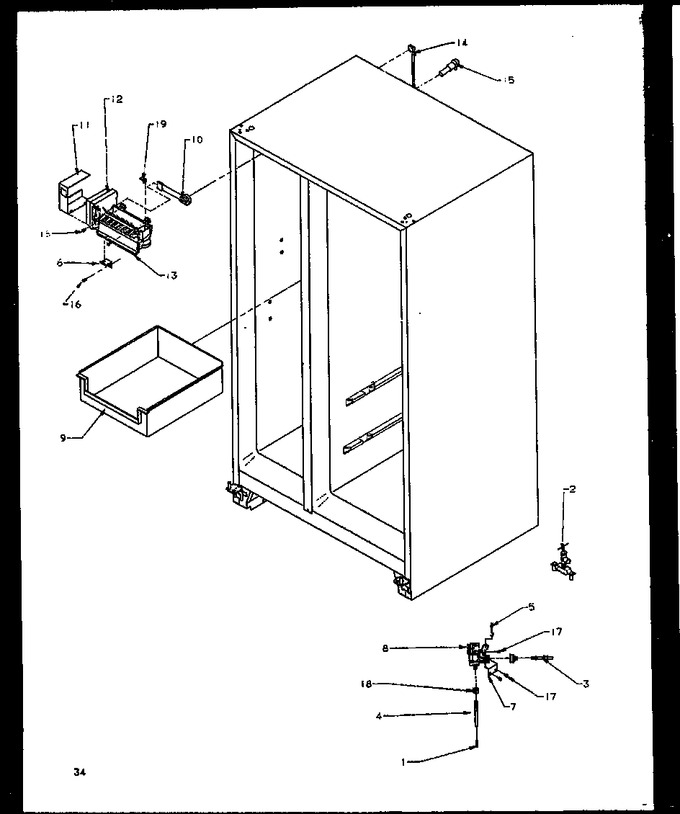

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A1055101 | Spring, Antikink |
|
- | |||||
| 2 | A3034801 | Saddle Valve |
|
- | |||||
| 3 | 10244901 | Coupling |
|
- | |||||
| 4 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 5 | B8374701 | Clip, Water Valve |
|
- | |||||
| 6 | B8391802 | Bracket, I/m |
|
- | |||||
| 7 | D7701601 | Brkt, Water Valve |
|
- | |||||
| 8 | 4318047 | Valve-water K (Replaces: D7712603) |
|
Immediately | $ 74.09 | ||||
| 9 | D7806211 | Pan, Ice |
|
- | |||||
| 10 | D7826301 | Harness, Mod. Im |
|
- | |||||
| 11 | D7820401 | Cover Im |
|
- | |||||
| 12 | D7824706Q | Ice Maker (Replaces: D7824702) |
|
Immediately | $ 167.35 | ||||
| 13 | D7875201 | Arm, I.m. Shut-off |
|
- | |||||
| 14 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 15 | 10277304 | Assy, Fill Tube |
|
- | |||||
| 16 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 17 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.71 | |||||
| 18 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 11.51 | |||||
| 19 | B5720301 | Clip |
|
- | |||||
| NI | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 |
