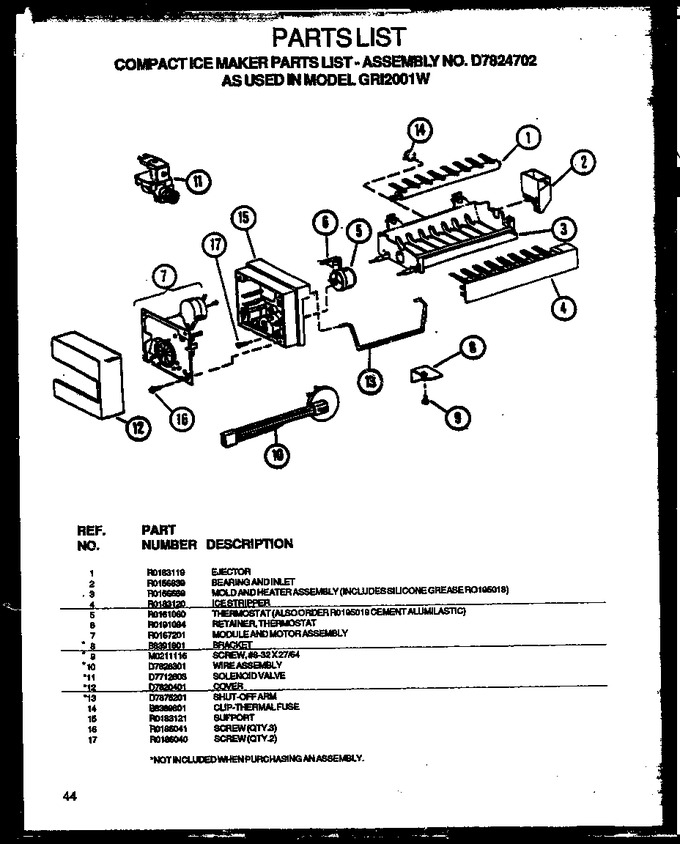

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP627843 | Ejector (Replaces: R0183119) |
|
$ 87.78 | |||||
| 2 | WP628356 | Cup, Water Fill/bearing (Replaces: R0156839) |
|
$ 53.75 | |||||
| 3 | D7824706Q | Assy, Mold & Heater (Replaces: R0156669) |
|
Immediately | $ 167.35 | ||||
| 4 | WP2182124 | Stripper, Ice (Replaces: R0183120) |
|
$ 90.35 | |||||
| 5 | WP627985 | N/a See Notes-thermostat (Replaces: R0161060) |
|
$ 114.64 | |||||
| 6 | WP2315522 | Retainer (Replaces: R0191094) |
|
$ 11.60 | |||||
| 7 | D7824706Q | Ice Maker (Replaces: R0167201) |
|
Immediately | $ 167.35 | ||||
| 8 | B8391801 | Bracket, I/m |
|
- | |||||
| 9 | M0211116 | Screw, Sm |
|
- | |||||
| 10 | D7826301 | Harness, Mod. Im |
|
- | |||||
| 11 | 4318047 | Valve-water K (Replaces: D7712603) |
|
Immediately | $ 74.09 | ||||
| 12 | D7820401 | Cover Im |
|
- | |||||
| 13 | D7875201 | Arm, I.m. Shut-off |
|
- | |||||
| 14 | WP628379 | Clip, Thermal Fuse (Replaces: B8389801) |
|
$ 11.10 | |||||
| 15 | WP2195914 | Support (Replaces: R0183121) |
|
$ 109.80 | |||||
| 16 | R0186041 | Screw |
|
- | |||||
| 17 | R0186040 | Screw |
|
- |
