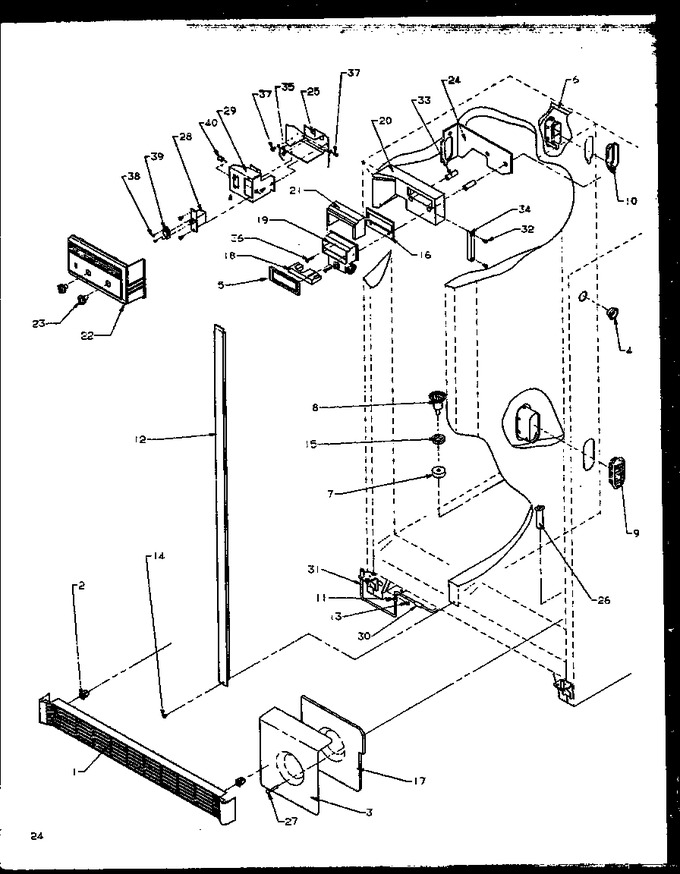

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10470301 | Kit, Toe Grille (blk) |
|
- | |||||
| 2 | M0117301 | Clip, Grille |
|
- | |||||
| 4 | A3187801 | Retainer |
|
- | |||||
| 5 | 10383201 | Gasket, Damper |
|
- | |||||
| 6 | B5705320 | Tubing, Plastic (wtr Tank/do |
|
- | |||||
| 7 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.78 | |||||
| 8 | W10815413 | Funnel, Drain (Replaces: D7753901) |
|
Immediately | $ 51.50 | ||||
| 9 | D7785401 | Grille-rtn Air |
|
- | |||||
| 10 | 10178001 | Tunnel Air Supply |
|
- | |||||
| 11 | M0102301 | Clamp |
|
- | |||||
| 12 | Y00000000 | See Note Vertical Mullion, White -- (not Replaceable, Foamed In Place) |
|
- | |||||
| 14 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 13.47 | |||||
| 15 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 11.47 | |||||
| 16 | B8345401 | Gasket, Damper |
|
- | |||||
| 18 | C8902601 | Insert, Control |
|
- | |||||
| 19 | D7547407 | Control, Damper |
|
- | |||||
| 20 | 10176602 | Air Duct, Waxed |
|
- | |||||
| 21 | D7788201 | Insulation |
|
- | |||||
| 22 | D7790339 | Cover, Control |
|
- | |||||
| 23 | D7795811 | Knob, Control |
|
- | |||||
| 24 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 25 | D7822402 | Box, Bottom Control |
|
- | |||||
| 28 | R0161092 | Control-temp (Replaces: C3615024) |
|
$ 226.99 | |||||
| 29 | D7832803 | Box-top Cont. |
|
- | |||||
| 32 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 33 | A3044208 | Spacer Damper |
|
- | |||||
| 34 | C8977301 | Clamp |
|
- | |||||
| 35 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 36 | M0216539 | Screw |
|
- | |||||
| 37 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 |
