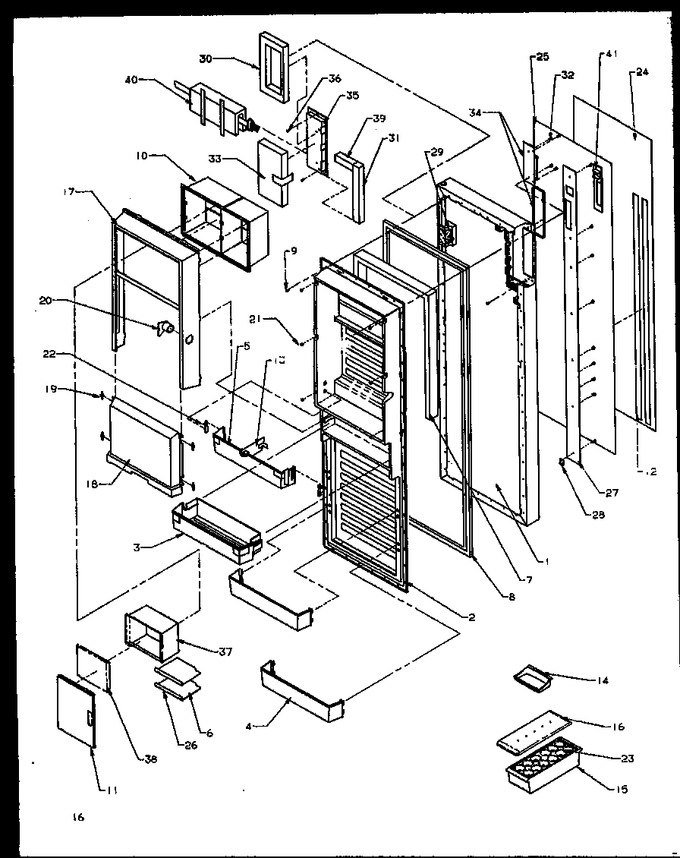

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10568301W		Ref. Door Fm Assy.		Appelez-nous	-
2	10505401		Liner, Refrig Door		Appelez-nous	-
3	10520206		Bucket, Refrig Door		Appelez-nous	-
4	10521806		Shelf-ref Door		Appelez-nous	-
5	10520406		Shelf, Chiller		Appelez-nous	-
6	10533502		Assy, Shelf Remove		Appelez-nous	-
7	B0523590		Insul., Batt		Appelez-nous	-
8	10359706		Gasket, Door (gray) Ref		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	10516901		Cavity, Dairy		Appelez-nous	-
11	10161609		Door, Dairy		Appelez-nous	-
13	10169005		Snugger, Shelf		Appelez-nous	-
14	10310901		Tray, Butter		Appelez-nous	-
15	10423116		Bin-egg		Appelez-nous	-
16	10436404		Lid, Utility				$ 60.85
17	10519001		Frame-chiller		Appelez-nous	-
18	10519206		Door, Chiller		Appelez-nous	-
19	10162101		Glide-igloo Door		Appelez-nous	-
20	10549101		Tunnel-air		Appelez-nous	-
21	10165101		Clip-tubular		Appelez-nous	-
22	10202001		Clip, Retainer		Appelez-nous	-
23	10436504		Tray, Egg		Appelez-nous	-
26	10162007		Extrusion, Shelf Dairy		Appelez-nous	-
37	10601801		Compartment, Medicine		Appelez-nous	-
38	10601902		Door, Medicine Compartment		Appelez-nous	-
