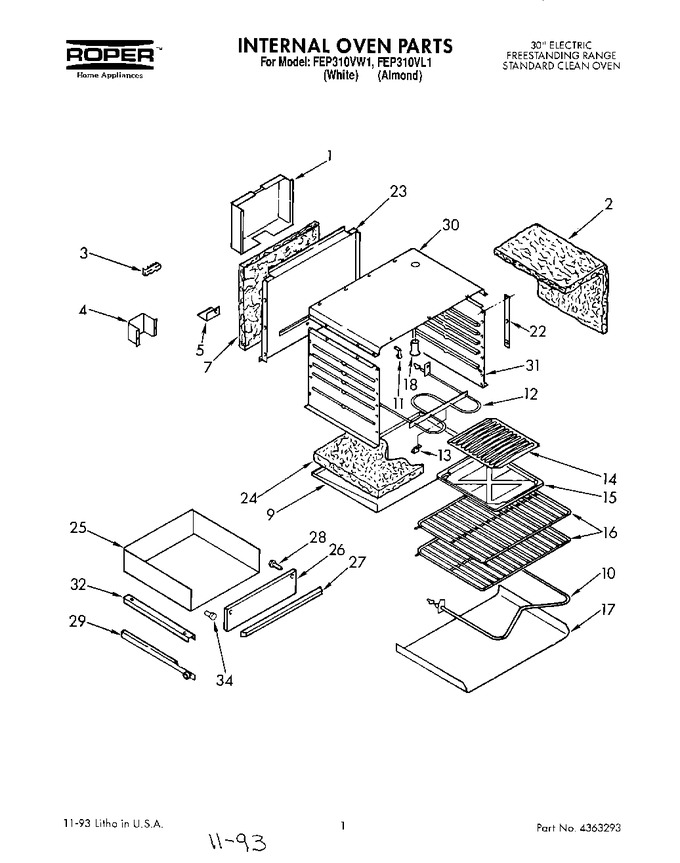

01 - Internal Oven
02 - External Oven
03 - Cooktop
04 - Control Panel, Literature
05 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4314943 | Shield, Wire |
|
- | |||||
| 2 | 4320508 | Insulation, Wrap |
|
- | |||||
| 3 | WP8203546 | Block, Terminal (Replaces: 4157955) |
|
Immediately | $ 27.12 | ||||
| 4 | 4320496 | Shield, Wire |
|
- | |||||
| 5 | 4320523 | Plate, Mounting |
|
- | |||||
| 7 | WPW10208653 | Insulation-back (Replaces: 4157664) |
|
Immediately | $ 54.98 | ||||
| 9 | 4315490 | Retainer Lower |
|
- | |||||
| 10 | WP4314958 | Element, Bake (Replaces: 4314958) |
|
$ 128.67 | |||||
| 11 | 98005642 | Clip, Thermo Bulb (Replaces: 4157329) |
|
Immediately | $ 78.37 | ||||
| 12 | 4157977 | Element, Broiler |
|
- | |||||
| 13 | 4157967 | Support, Element |
|
- | |||||
| 14 | 4315094 | Grid, Broil Pan |
|
- | |||||
| 15 | 4396923 | Pan, Broiler (Replaces: 4315095) |
|
Immediately | $ 54.64 | ||||
| 16 | 4320804 | Rack, Oven (2) |
|
- | |||||
| 17 | 4320773 | Bottom, Oven |
|
- | |||||
| 17 | WP308685 | Screw No.10 X 1/2 (3) (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 18 | 4320543 | Tube, Vent |
|
- | |||||
| 22 | 4157328 | Support, Oven Side (2) |
|
- | |||||
| 23 | 4315052 | Backliner, Oven |
|
- | |||||
| 23 | WP308685 | Screw, No.10 X 1/2 (10) (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 24 | WPW10208653 | Insulation, Bottom (Replaces: 4157664) |
|
Immediately | $ 54.98 | ||||
| 25 | 4363284 | Drawer, Storage |
|
- | |||||
| 26 | 4320528 | Drawer, Front (almond) |
|
- | |||||
| 26 | 4320527 | Drawer, Front (white) |
|
- | |||||
| 27 | 4157040 | Handle, Drawer |
|
- | |||||
| 28 | 4320579 | Screw, Handle (2) |
|
- | |||||
| 29 | 4320465 | Track, Lower Assy. (left Side) |
|
- | |||||
| 29 | 4320466 | Track, Lower Assy. (right Side) |
|
- | |||||
| 30 | 4315043 | Liner, Oven Top |
|
- | |||||
| 30 | WP308685 | Screw, No.10 X 1/2 (7) (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 31 | 4320452 | Screw, No.10 X 1/2 (6) |
|
- | |||||
| 31 | 4320662 | Screw, No.10 X 5/8 (6) |
|
- | |||||
| 31 | 4315753 | Liner, Oven Side (2) |
|
- | |||||
| 32 | 4364023 | Track, Upper Assy. (left Side) |
|
- | |||||
| 32 | 4364024 | Track, Upper Assy. (right Side) |
|
$ 74.85 | |||||
| 34 | 4157128 | Bumper (2) |
|
- |
