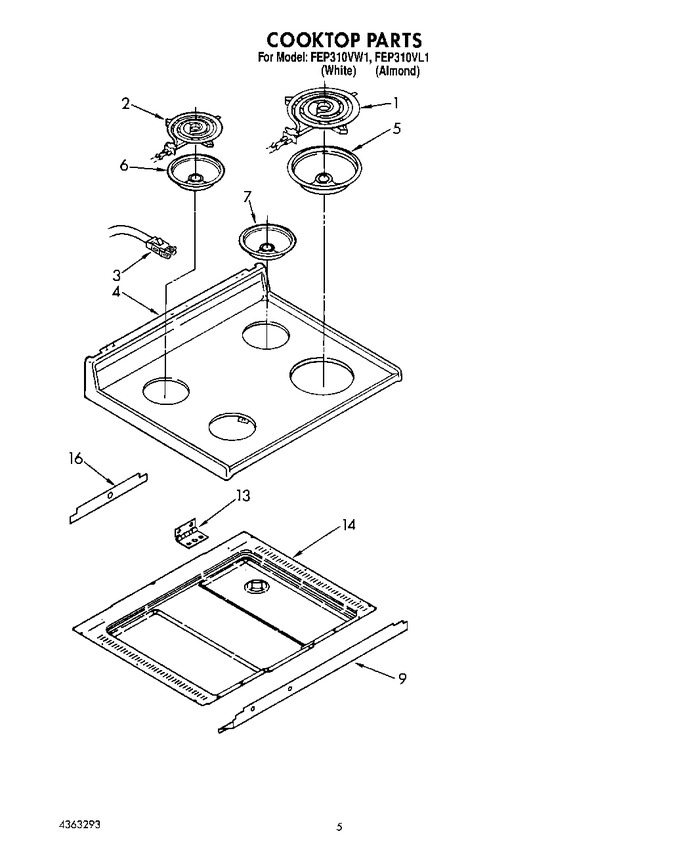

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4315620 | Element, Large (1) |
|
- | |||||
| 2 | 4315619 | Element, Small (3) |
|
- | |||||
| 3 | 330031 | Receptacle, Element (4) (Replaces: 4179038) |
|
Immediately | $ 17.93 | ||||
| 4 | 4320505 | Cooktop (almond) |
|
- | |||||
| 4 | 4320504 | Cooktop (white) |
|
- | |||||
| 5 | W10196405RW | Bowl, Chrome Large (1) (Replaces: 4157960) |
|
Immediately | $ 19.64 | ||||
| 6 | WPW10196406 | Bowl, Chrome Small (2) (Replaces: 4157961) |
|
Immediately | $ 12.42 | ||||
| 7 | WPW10196406 | Bowl, Chrome Right Rear (1) (Replaces: 4320551) |
|
Immediately | $ 12.42 | ||||
| 9 | 4320495 | Extension, Burner Box |
|
- | |||||
| 10 | WP308685 | Screw, No.10 X 1/2 (10) (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 13 | 4157083 | Hinge, Cooktop (2) |
|
- | |||||
| 14 | 4320494 | Bottom, Burner Box |
|
- | |||||
| 16 | 4320493 | Cover, Switch |
|
- |
