SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Cooktop


04 - Control Panel, Literature

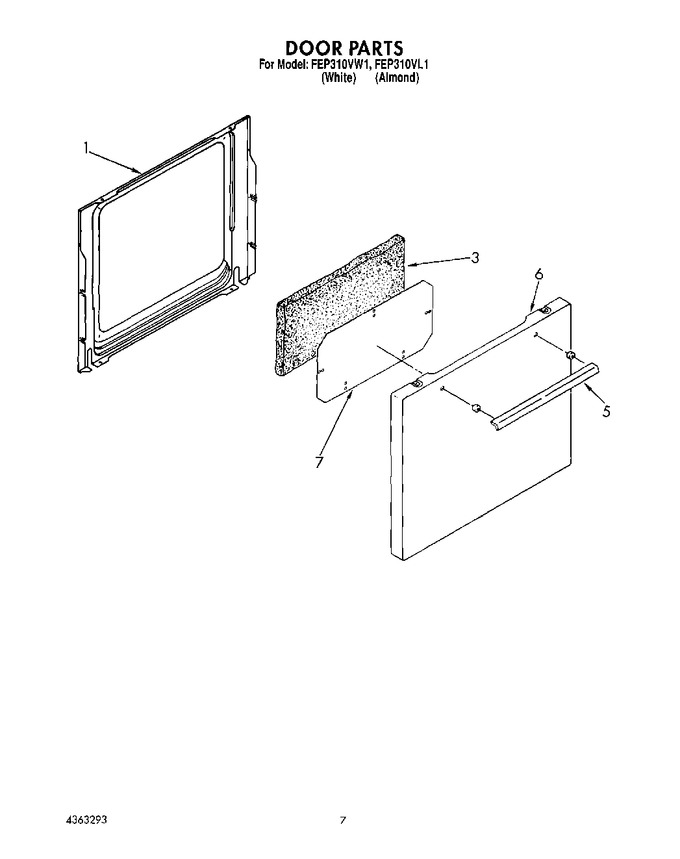

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320538		Liner, Door		Appelez-nous	-
3	4157033		Insulation, Door		Appelez-nous	-
5	4157040		Handle, Oven Door		Appelez-nous	-
5	4320579		Screw, Handle (2)		Appelez-nous	-
5	4157041		Spacer, Handle (2)		Appelez-nous	-
6	4320555		Panel, Front		Appelez-nous	-
6	4320542		White		Appelez-nous	-
6	4320601		Almond		Appelez-nous	-
6	4320742		Screw, No.10 X 1/2 (6)		Appelez-nous	-
7	4320352		Retainer, Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
