Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP308685 Screw No.10 X 1/2   (Replaces: 4320407) In-Stock Immediately $ 7.08

2 4320511 Spacer (2) Appelez-nous -
3 4320448 Cover, Backguard Appelez-nous -
4 4320549 End Cap (left) Appelez-nous -
4 4320550 End Cap (right) Appelez-nous -
5 4320491 Support, Backguard (right) Appelez-nous -
5 4320490 Support, Backguard (left) Appelez-nous -
7 WP308499 Nut (2)   (Replaces: 4320554) Special Order $ 6.57

8 W10900107 Switch, Infinite (4)   (Replaces: 4314945) In-Stock Immediately $ 51.87

9 4320510 Indicator Light, Burner Appelez-nous -
10 4320400 Panel, Control (white) Appelez-nous -
10 4320401 Panel, Control (almond) Appelez-nous -
13 4320506 Light, Indicator Oven Appelez-nous -
17 4315513 Knob, Infinite (4) Appelez-nous -
26 4315514 Knob, Thermostat Appelez-nous -
27 4320548 Thermostat Appelez-nous -
LIT4315644 Use & Care Manual Appelez-nous -
LIT4315694 Installation Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

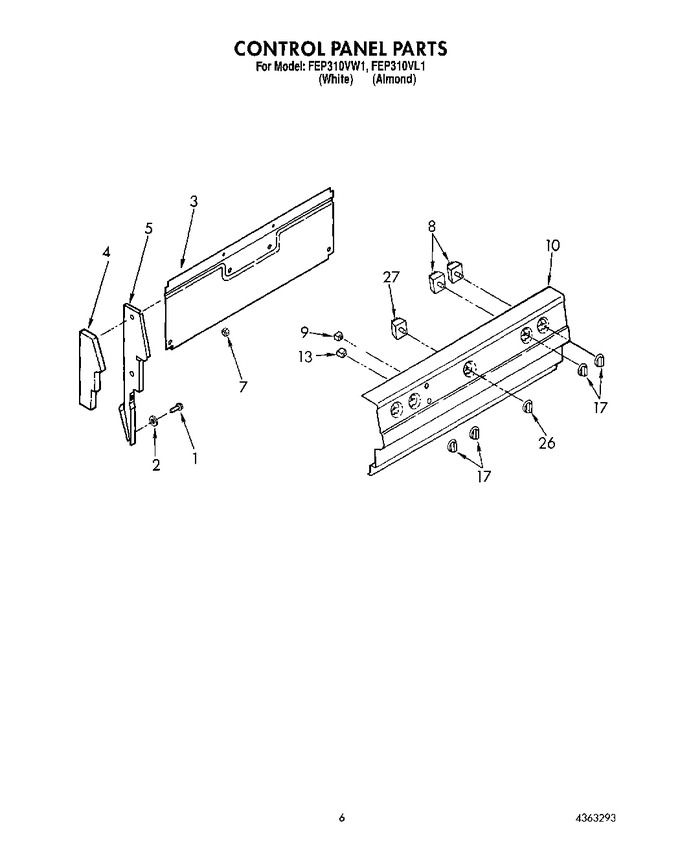

Diagram for FEP310VW1
