SELECT A DIAGRAM

01 - Internal Oven

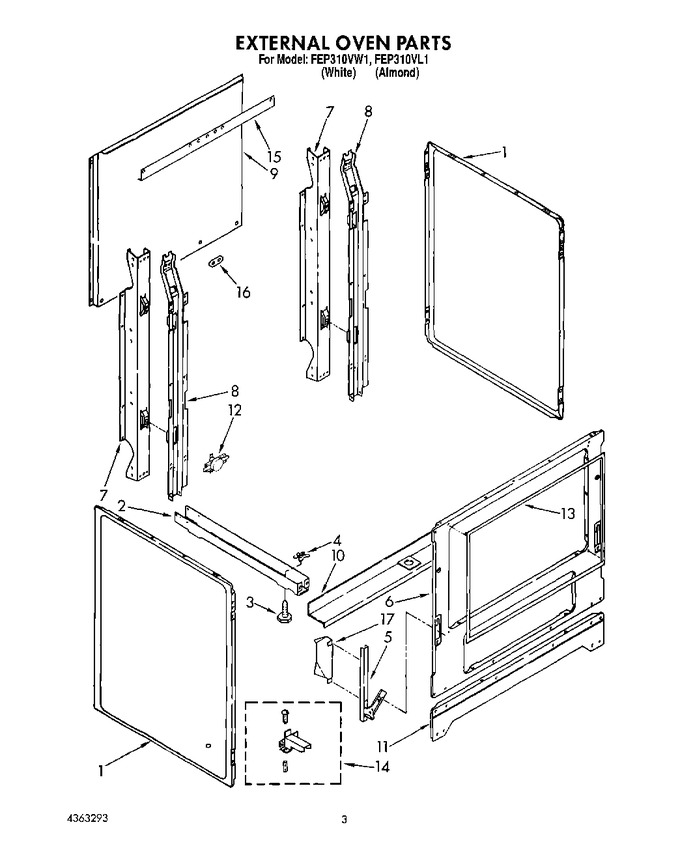

02 - External Oven


03 - Cooktop


04 - Control Panel, Literature


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363025		Body Side (almond)		Appelez-nous	-
1	4363024		Body Side (white)		Appelez-nous	-
2	4320525		Rail, Base		Appelez-nous	-
3	4157161		Leg Leveler		Appelez-nous	-
4	4157332		Nut		Appelez-nous	-
5	4320499		Hinge, Oven Door		Appelez-nous	-
6	4320497		Main Front		Appelez-nous	-
7	4315382		Support, Rear		Appelez-nous	-
8	4157011		Support, Main (2)		Appelez-nous	-
9	WP308685		Screw, No.10 X 1/2 (12)   (Replaces: 4320407)			Immediately	$ 7.08
9	4315529		Back, Main		Appelez-nous	-
10	4315213		Support, Oven		Appelez-nous	-
11	4157006		Panel, Base		Appelez-nous	-
12	4179130		Disc, Thermo		Appelez-nous	-
13	4320463		Seal, Oven		Appelez-nous	-
14	4363057		Anti-tip Kit		Appelez-nous	-
15	4320541		Extension, Back		Appelez-nous	-
16	4320523		Bracket, Conduit		Appelez-nous	-
17	4157325		Shield, Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
