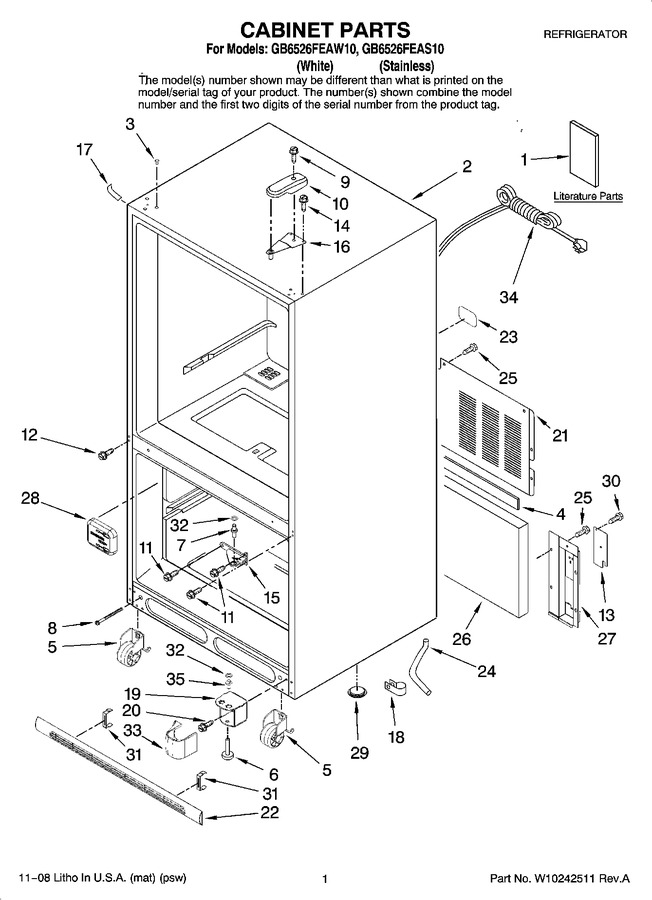

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 16023324 | Service Manual (icemaker) |
|
- | |||||
| 1 | 12828189 | Use & Care Guide |
|
- | |||||
| 1 | 12827958 | Tech Sheet |
|
- | |||||
| 3 | WP67001130 | Plug, Button (3) White (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 12580304KVF | Roller Assy. (2) |
|
- | |||||
| 6 | W11177593 | Foot Brake (Replaces: 67003868) |
|
$ 12.18 | |||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 67006744) |
|
$ 8.68 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 67006611) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | 67001014 | Cover Hinge (white) |
|
$ 22.34 | |||||
| 10 | 67001012 | Cover Hinge (black) |
|
$ 49.71 | |||||
| 11 | W11573362 | Screw (Replaces: 67006380) |
|
$ 14.72 | |||||
| 12 | WP489349 | Screw (Replaces: 67005822) |
|
Immediately | $ 8.43 | ||||
| 13 | 12479902 | Plate, Cover |
|
- | |||||
| 14 | WP489349 | Screw (3) (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 67006960) |
|
$ 69.79 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 17 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 22.14 | ||||
| 17 | 67003484 | Cover, Corner (white) |
|
$ 21.42 | |||||
| 18 | W10157973 | Clip, Drain |
|
$ 7.80 | |||||
| 19 | W10215662 | Hinge, Bottom (black) |
|
$ 34.73 | |||||
| 19 | 67001069 | Hinge, Bottom (white) |
|
- | |||||
| 20 | 67006564 | Screw (4) |
|
Immediately | $ 8.15 | ||||
| 21 | 12575101WD | Cover, Unit |
|
$ 73.26 | |||||
| 22 | 67002223 | Grille, Toe (white) |
|
- | |||||
| 22 | 67002224 | Grille, Toe (black) |
|
$ 38.59 | |||||
| 23 | W11685757 | Label, Fill Tube (Replaces: 67005064) |
|
$ 7.41 | |||||
| 24 | W10164397 | Tube, Drain |
|
$ 15.53 | |||||
| 25 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 26 | 67003796 | Fiber, Acoustic |
|
$ 19.27 | |||||
| 27 | W10132665 | Cover, Water Valve |
|
- | |||||
| 28 | WP67001098 | Cover, Fill Tube (Replaces: 67001098) |
|
$ 8.43 | |||||
| 29 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 30 | WP489128 | Screw (Replaces: 67006662) |
|
$ 11.40 | |||||
| 31 | 12627302 | Clip, Grille |
|
$ 5.84 | |||||
| 32 | WPM0274062 | Shim, Hinge (black) (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 32 | WPM0274057 | Shim, Hinge (white) (Replaces: M0274057) |
|
Immediately | $ 8.40 | ||||
| 33 | 12561901W | Cover, Lw Hinge (white) |
|
$ 6.37 | |||||
| 33 | 12561901B | Cover, Lw Hinge (black) |
|
$ 11.62 | |||||
| 34 | W10462018 | Cord, Power (Replaces: 13015202) |
|
- | |||||
| 35 | 67007018 | Pin, Bottom Hinge |
|
Immediately | $ 8.62 |
