SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts

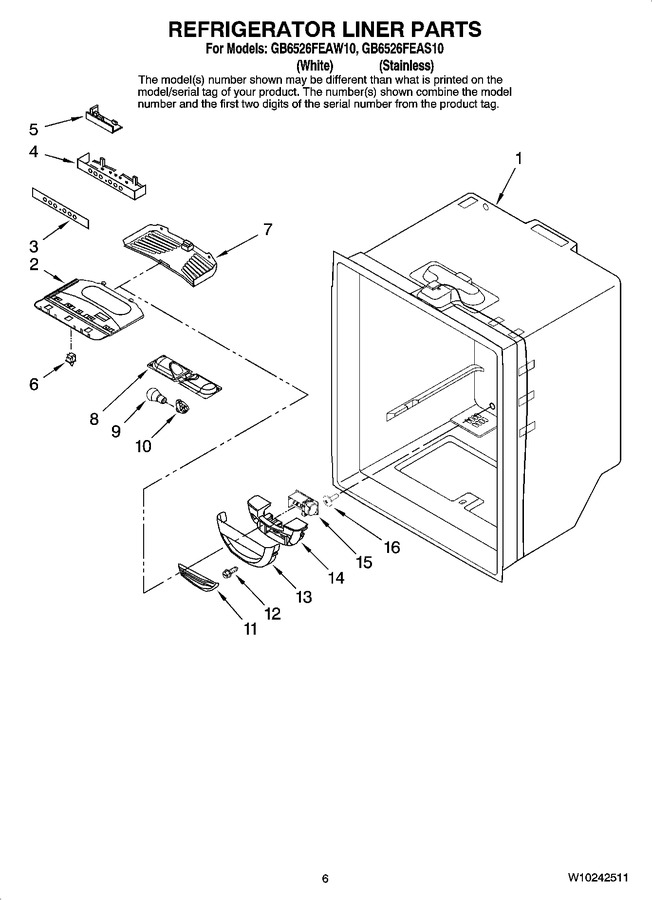

04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	Y67003896		Module, Light		Appelez-nous	-
3	67005072		Overlay		Appelez-nous	-
4	WPW10464769		Module, Control   (Replaces: W10185244)			Immediately	$ 108.34
5	WPW10708492		Board, Control (incl Instr Sheet)   (Replaces: W10206638)				$ 253.02
6	W11384469		Switch, Light   (Replaces: C3680310)			Immediately	$ 37.23
7	W11284721		Cover, Light   (Replaces: 67003897)				$ 100.97
8	12806601		Housing, Light   (Replaces: 67003901)				$ 104.95
9	WP67002552		Bulb, Light (2)   (Replaces: 67002552)			Immediately	$ 11.75
10	W11447232		Socket, Light (2)   (Replaces: W10134764)			Immediately	$ 13.21
11	67003900		Insert, Damper Cover			Immediately	$ 8.14
12	W11772394		Screw   (Replaces: 67006602)			Immediately	$ 12.16
13	WP12806701		Cover, Damper   (Replaces: 67003899)				$ 113.00
14	W11750607		Insulation   (Replaces: 67006604)				$ 47.76
15	W10177399		Control, Damper (includes Harness)		Appelez-nous	-
16	M0310343		Plug Button White				$ 10.67
NI	12973503		Harness, Controls (incl. Thermistor)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
