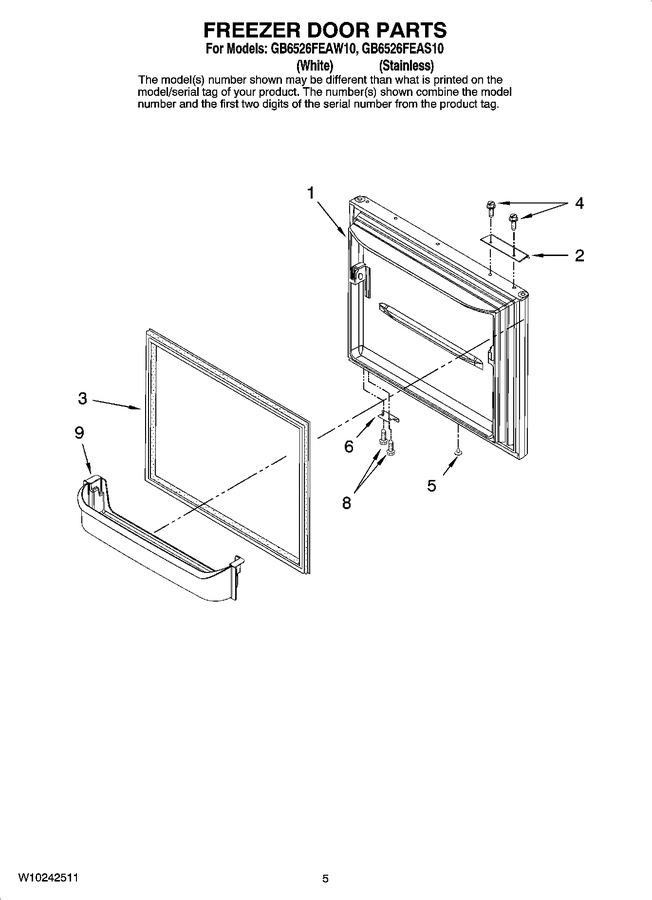

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168717 | Door, Freezer (white) |
|
- | |||||
| 1 | 13024223SQ | Door, Freezer (stainless) |
|
- | |||||
| 2 | WP67005140 | Handle, Door (white) (Replaces: 67005140) |
|
Immediately | $ 148.34 | ||||
| 2 | WP67003572 | Handle, Door (stainless) (Replaces: 67003572) |
|
$ 169.22 | |||||
| 3 | W10443315 | Gasket, Door (white) (Replaces: W10164036) |
|
$ 193.98 | |||||
| 3 | WPW10436250 | Gasket, Door (black) (Replaces: W10164037) |
|
Immediately | $ 347.99 | ||||
| 4 | WPW10348409 | Screw, Handle (Replaces: 67006831) |
|
Immediately | $ 7.76 | ||||
| 5 | 10712401 | Plug, Button (2) (white) |
|
$ 7.79 | |||||
| 5 | 67004838 | Plug, Button (2) (black) |
|
$ 10.68 | |||||
| 6 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 65.99 | |||||
| 6 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.05 | ||||
| 8 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.00 | |||||
| 9 | 67003934 | Retainer, Door Shelf |
|
$ 22.73 |
